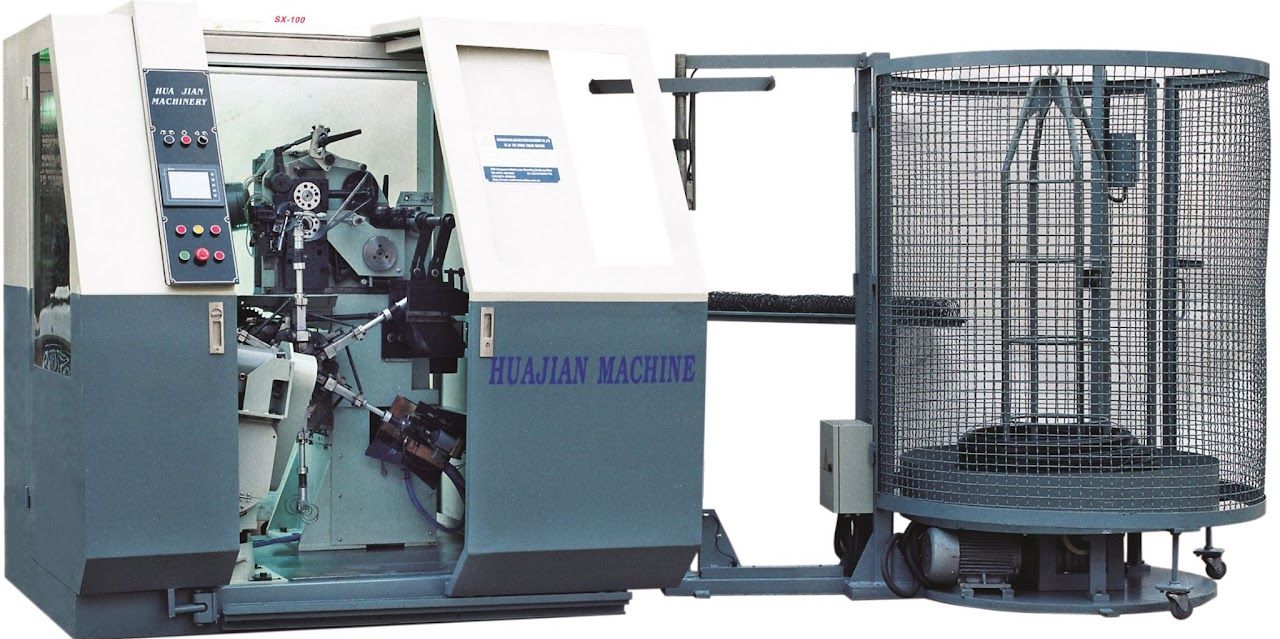

SX-100 Bonnell Spring Coiling Machine

• This spring coiling machine is specialised for making bonnell spring for making high quality spring unit for manufacturing spring mattresses. Automated features make this machine user friendly to adjust spring height & dimensions as per the requirements.

Advantage of SX-100

• Speed: 90-95 pcs spring/min.

• Servo control coiling system.

• Two CPU control + highly sensitive touch screen.

• Knot servo motor control system.

• Automatic control: such as wire feeding length, heat treatment, oil lubrication and self-protecting.

• Perfect spring quality: tight knot, beautiful shape.

• Stability and high efficiency.

• Low cost on after-service.

• Whole machine is covered so at production time, noise will be reduced.

• Machine operation is user friendly, so no special requirement for machine.

Technical Specification-

• Model: SX-100

• Brand: Huajian

• Output: 90-95spring/min

• Spring End Diameter: 62 - 95mm

• Steel Wire Diameter: 2.0mm ~ 2.4mm

• No. of Rings: 4-7 turns

• Spring Height: 70 – 190mm (Option 190 – 210mm)

• Main Drive Power: 4.0kw

• Heat Treatment Power: 10.0kw

• Swift Frame Power: 2.2kw

• Rated Power: 380VAC, 3 Phase- 5 line, 50/60Hz.

• Gest Load Can Hold of Steel Wire Plate: 300kg

• Weight: 2730kg Approx.
