| Business Type | Manufacturer, Exporter, Supplier, Importer |
| Country of Origin | India |
| Output | 5 - 20 Units Per Hour |
| Compress Type | Air Hydraulic |
| Click to view more | |
Product Details
-

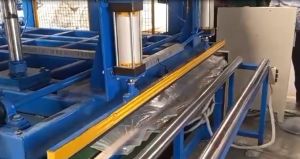

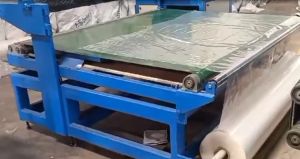

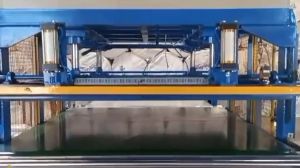

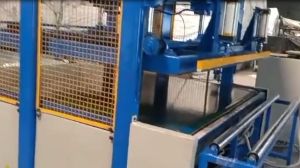

This packing machine is specialized for compress sponge foam mattress, spring mattress and convert in to roll from the flat mattress. Heavy duty hydraulic system for compress the mattress to the maximum and seal plastic from side and transfer to make the thinnest roll for bulk storage and transportation. Fll automatic function and control via PLC drive and adjustable speed for smooth production and increase productivity. This machine can be use for compress quilts, mattress pillow, etc.
Technical Specification-
-
Model: BT-8084-iS-CRP
-
Machine Type: Hydraulic & Automatic
-
Output: 5 - 20 unit per hour (depend on the mattress type or height)
-
Compress Type: Air Hydraulic
-
Compress Width: 2000 x 2000mm
-
Rolling Width: 2000mm
-
Max Compress Height: 300mm
-
Compress sides: Total Five including Center compress
-
Transfer Mattress: With or Without Conveyer
-
Rolling Type: Automatic
-
Rolling speed: 7mtr/min
-
Plastic Film Feed: Automatic
-
Power: 3Phase / 380VAC / 50Hz
-
Load: 7.5Hp
-
Machine dimension: 2500 x 4000 x 2800mm
-
Machine Weight: 3000kg
