Embroidery Machines

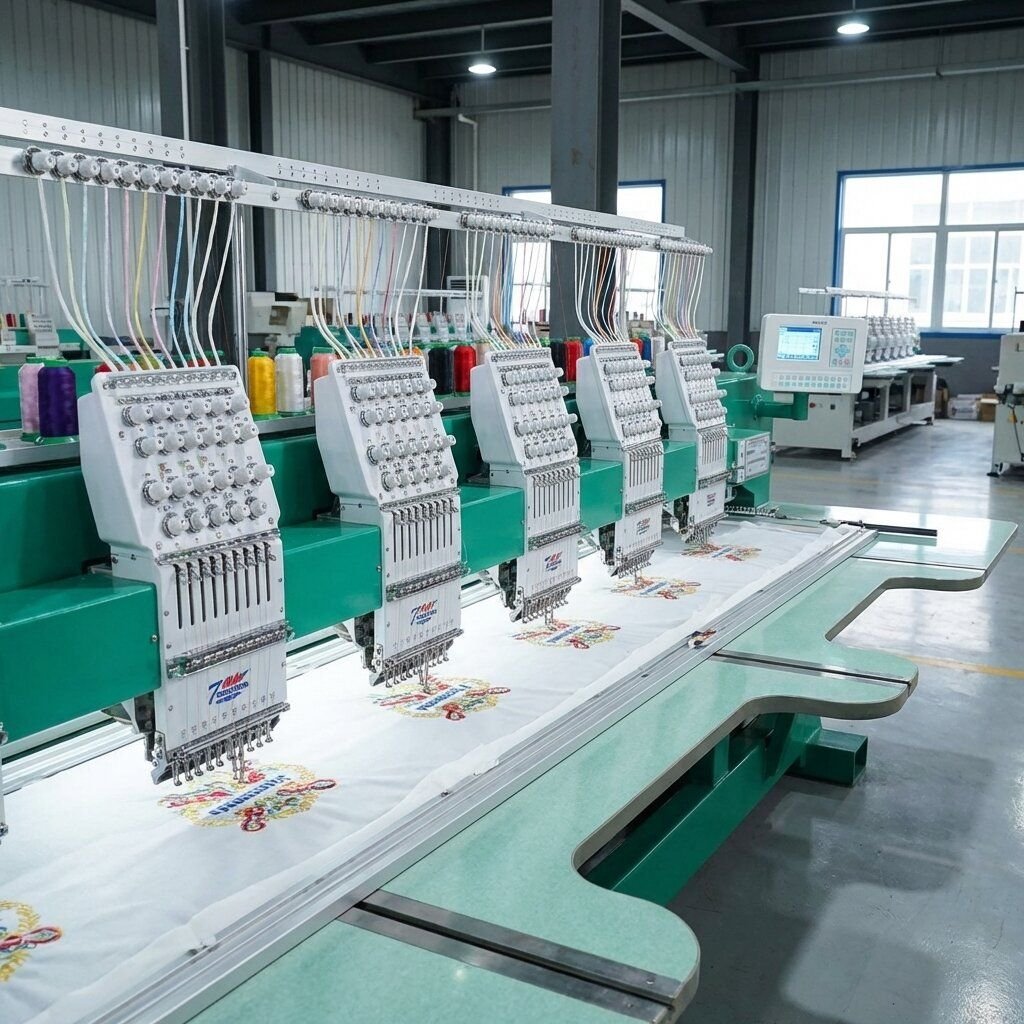

• This computerized multi head flat bed embroidery machine is design for apparel and garment manufacturing industry, it can be use for embroidery work on saree, kurtis, large fabric, etc. It is best design embroidery machine with latest technology and features for making wide range of embroidery designs like logos and different types of design. Available in multi head with multi color options.

Machine Features-

•  FLAT Embroidery Machine for embroidery work on Sarees, Ladies Suits, T-shirt, Pillow & Cushions.

• Sequins & Cording Device Optional.

• Dahao Touch Panel 10inch, 12inch & 15inch Screen.

• All Dahao Servo Motors with servo Drive.

• Japanese Rotary Hook.

• Automatic Thread Trimming Function .

• Advance Thread Break Detector.

• Customised embroidery area available.

• Power Failure Backup Safety.

• Optional Divider available for using small garments for embroidery.

Technical Specification-

• Model: BT-0920-iSA

• Power: 1Phase, 220VAC, 50HZ

• Load: 2.0kw

• Power: 220VAC / Single Phase/ 50Hz.

• Number of Needles: 6, 9,12,15

• Head: Multi Heads

• Embroidery Area: 300 x 600 x 1000mm / 400 x 800 x 1200mm (Can Be customised)

• Memory: 50millions stitch can be store

• Speed: 1200spm

• Machine Weight: 4000kg

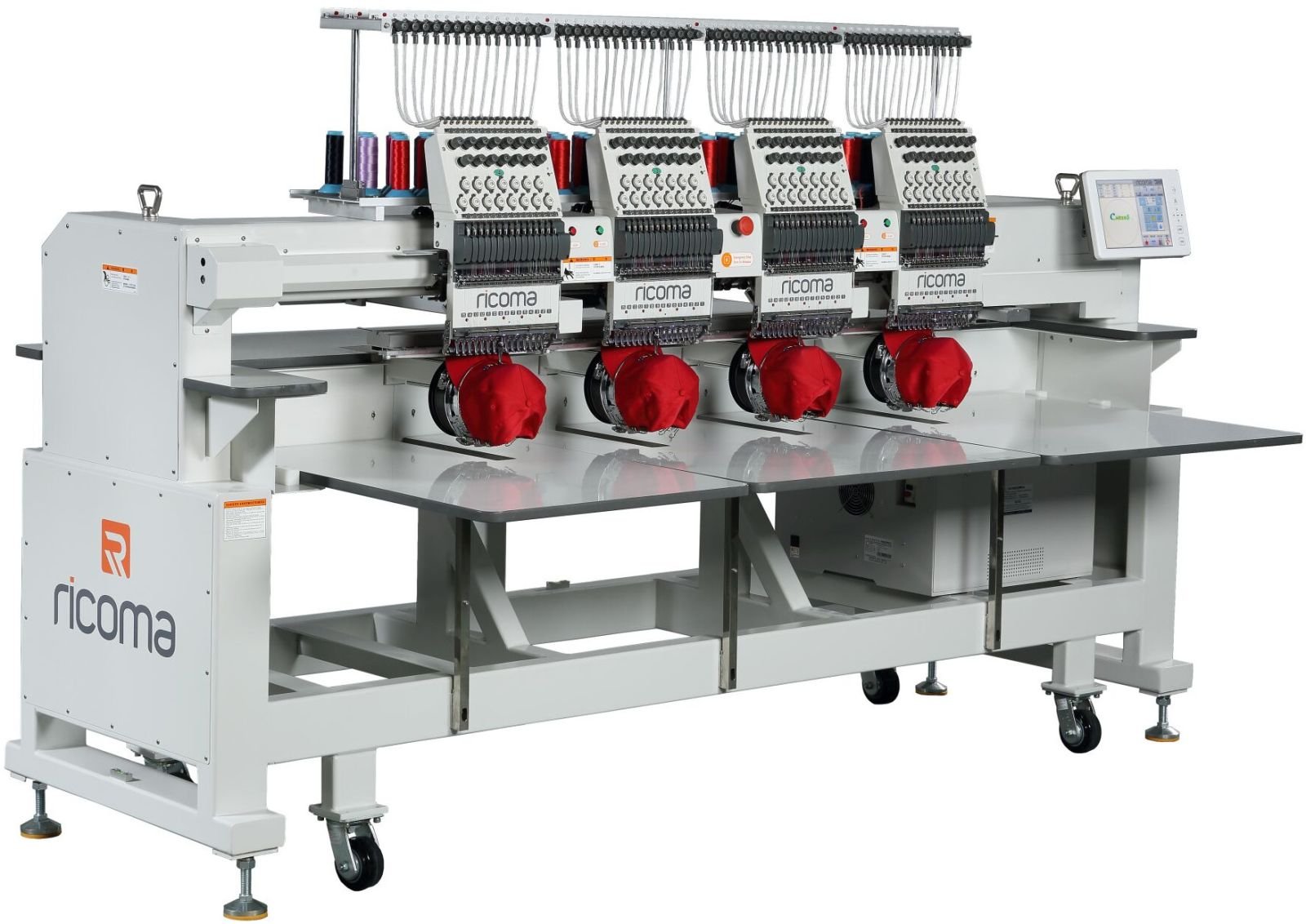

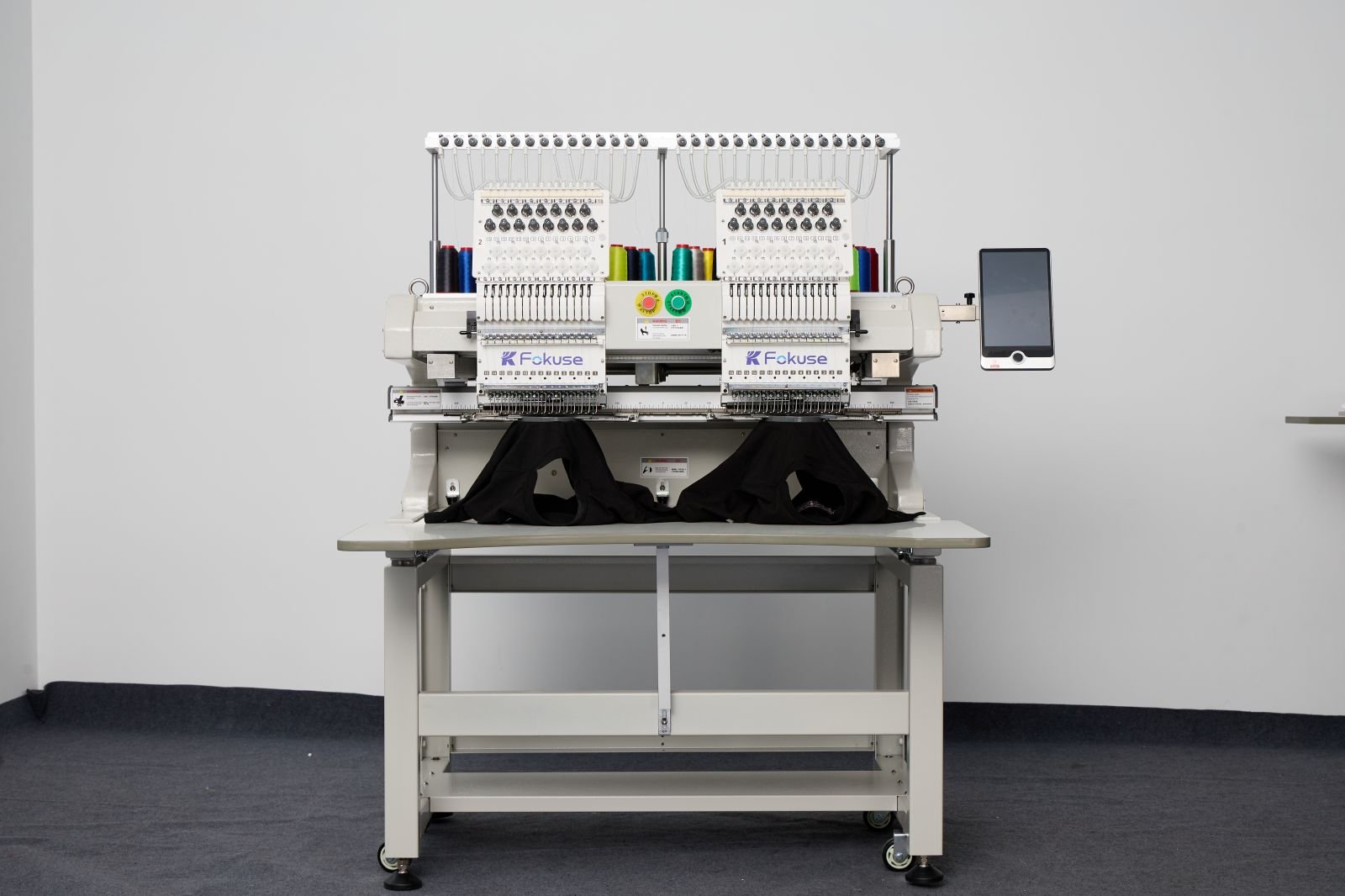

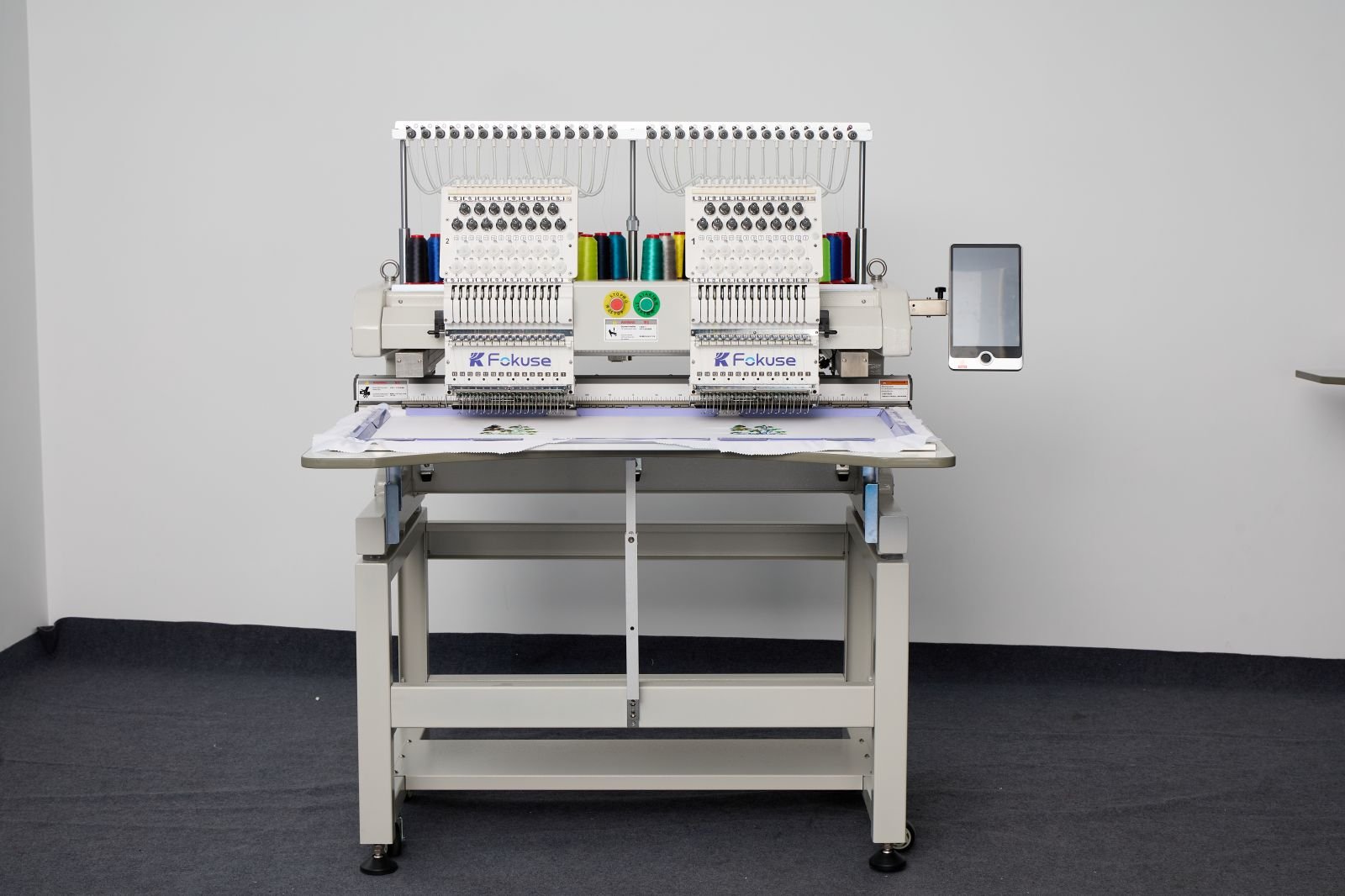

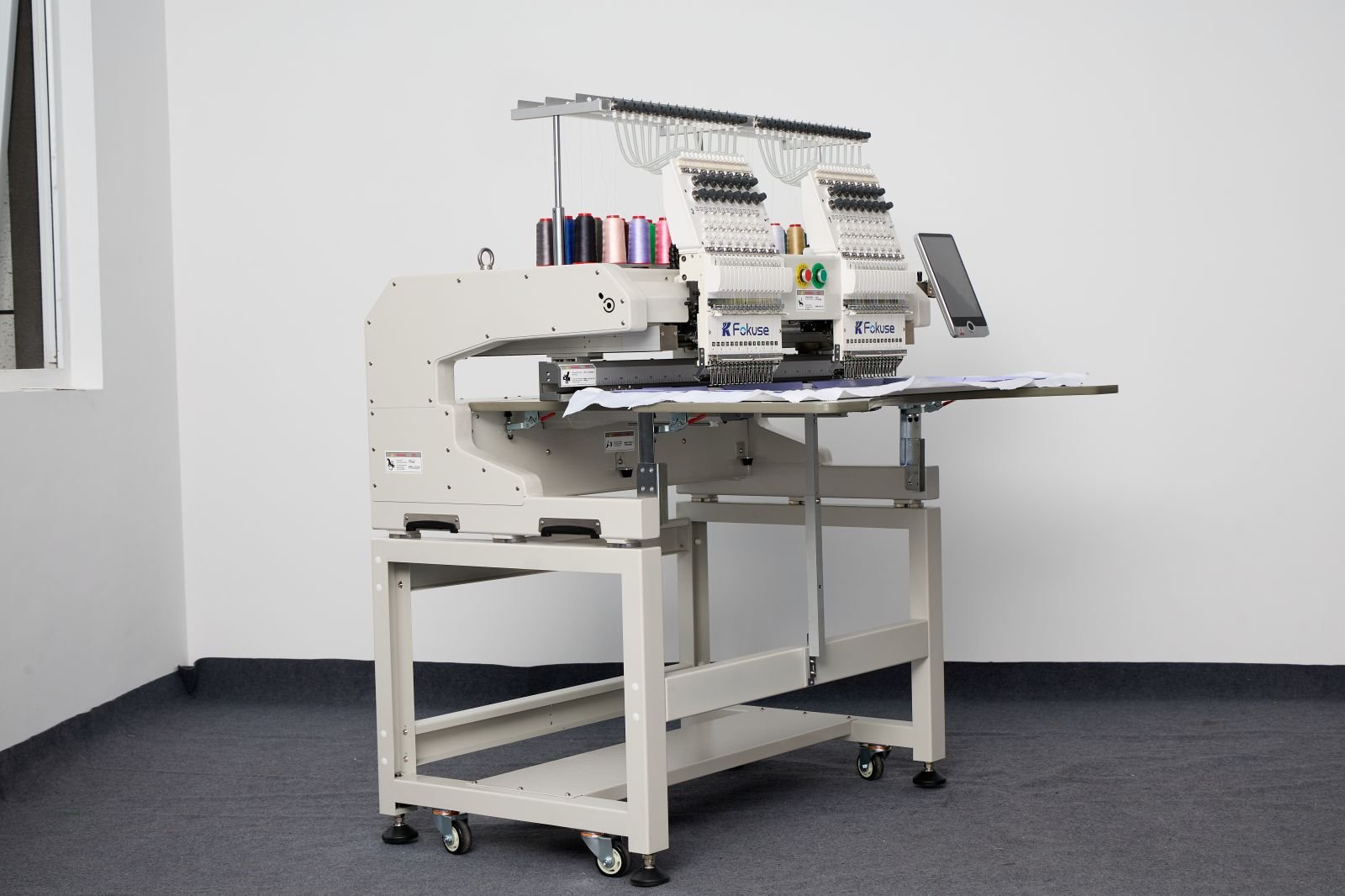

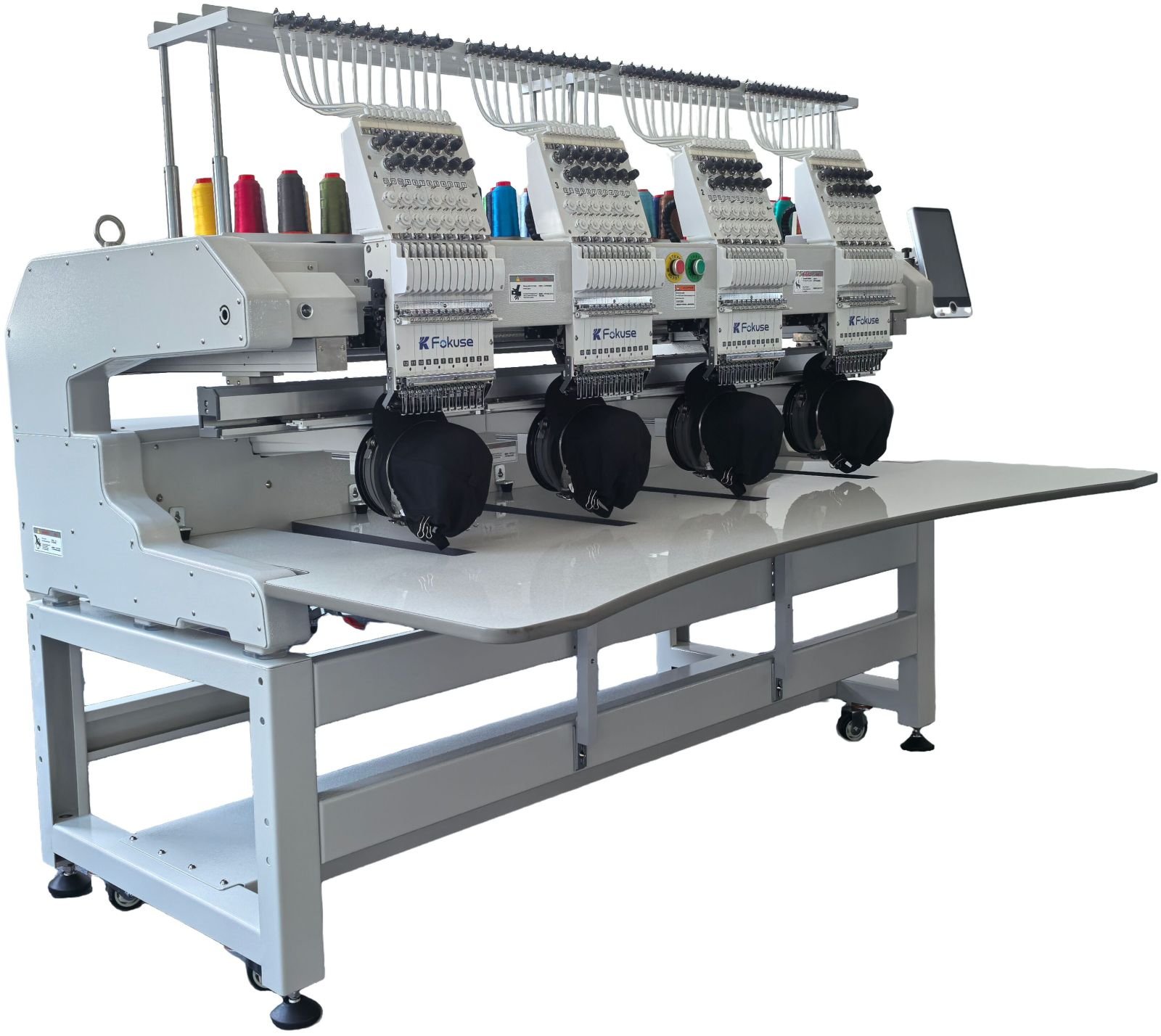

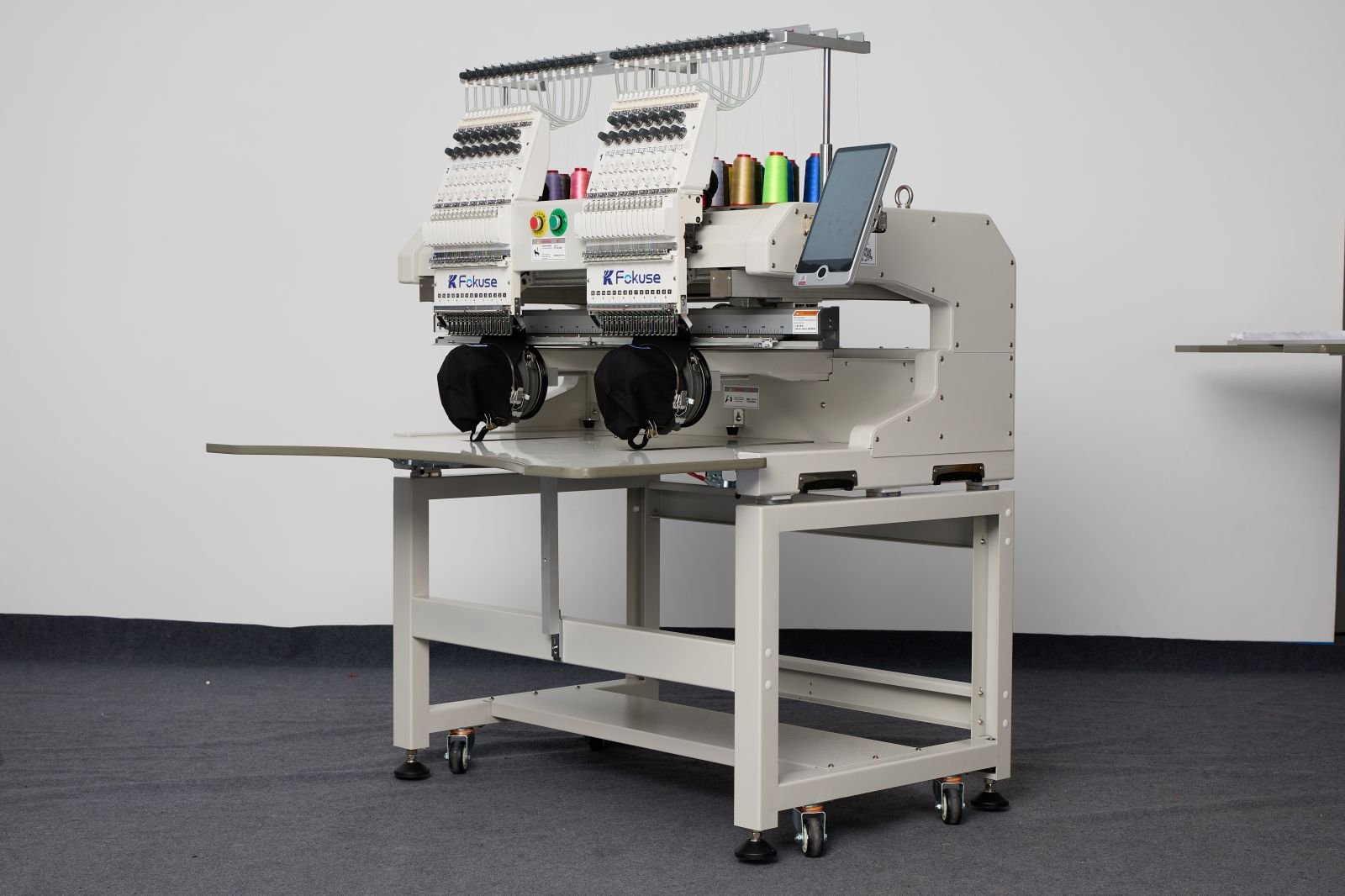

• This CHT2 series embroidery machine is best design for large scale production for apparel & garment manufacturing industry to embroidery work on all kind of readymade garment products and cap products. Fully Automatic and user friendly features make this machine more unique for apperal and garment manufacturing industry.

Machine Features-

• Double beam design to reinforce machine stability and reduce vibration

• Double belt system allows for higher torque, less noise and easier maintenance

• Reinforced square guide rails allow for higher impact resistance and durability

• Leveling feet pre-mounted in the factory for easy transportation and installation

• Double lighting system for better visibility

• Suitable for embroidery on flats, caps, finished garments and more

• Perfect for established and growing embroidery businesses

• 10.4-inch HD LCD touch-screen panel

• Maximum embroidery area: 400mm x 450mm [16” x 18”]

• Optional wide model with embroidery area of 500 mm x 450 mm [20” x 18”]

• Newly developed small sewing arm for high-quality embroidery on caps and small items

• Heavy duty steel stand with wheels to ensure stability and mobility

• Maximum speed: 1,000 stitches per minute

• Memory capacity: 70 million stitches or 200 designs

• 270° wide angle cap system

• Environmentally friendly packaging

• USB input for design transfer.

• Servo motor 150 W – lowest power consumption in the industry!

• Built-in universal power supply 110V/60Hz and 200V/50Hz (self adaptable worldwide)

• DC36V micro-step motor for X & Y axis driving to ensure low noise and less vibration

• Emergency stop button

• Automatic thread trimmer

• Thread break detection

• Easily apply appliqué, sequin, boring or cording

• Recessed USB port to protect USB flash drive

• Machine reads multiple design formats, such as DST, DSB and more

• New embroidery frame positioning board makes changing embroidery frames easier

• Slim machine width allows for easy entry through standard sized doors

• Multiple hoop sizes for a variety of embroidery needs

• Automatic memory retention

• Optional laser tracing device available

Technical Specification-

• Machine Name: CHT2 / CHS2 Series

• Model: Available up to 12heads

• Brand: Ricoma

• Panel: High-Definition True-Color 10.4” LCD Touch Screen

• Heads: 2 - 12heads

• Needles: 12/15

• Net Weight: 650kg - 1500kg

• Embroidery Area: 400 x 450mm (Optional: 450 x 500mm)

• Cap Embroidery Area: 270°

• Maximum Speed 1000 spm

• Voltage: 90-240 v

• Power Consumption: 0.5kw - 1.5kw

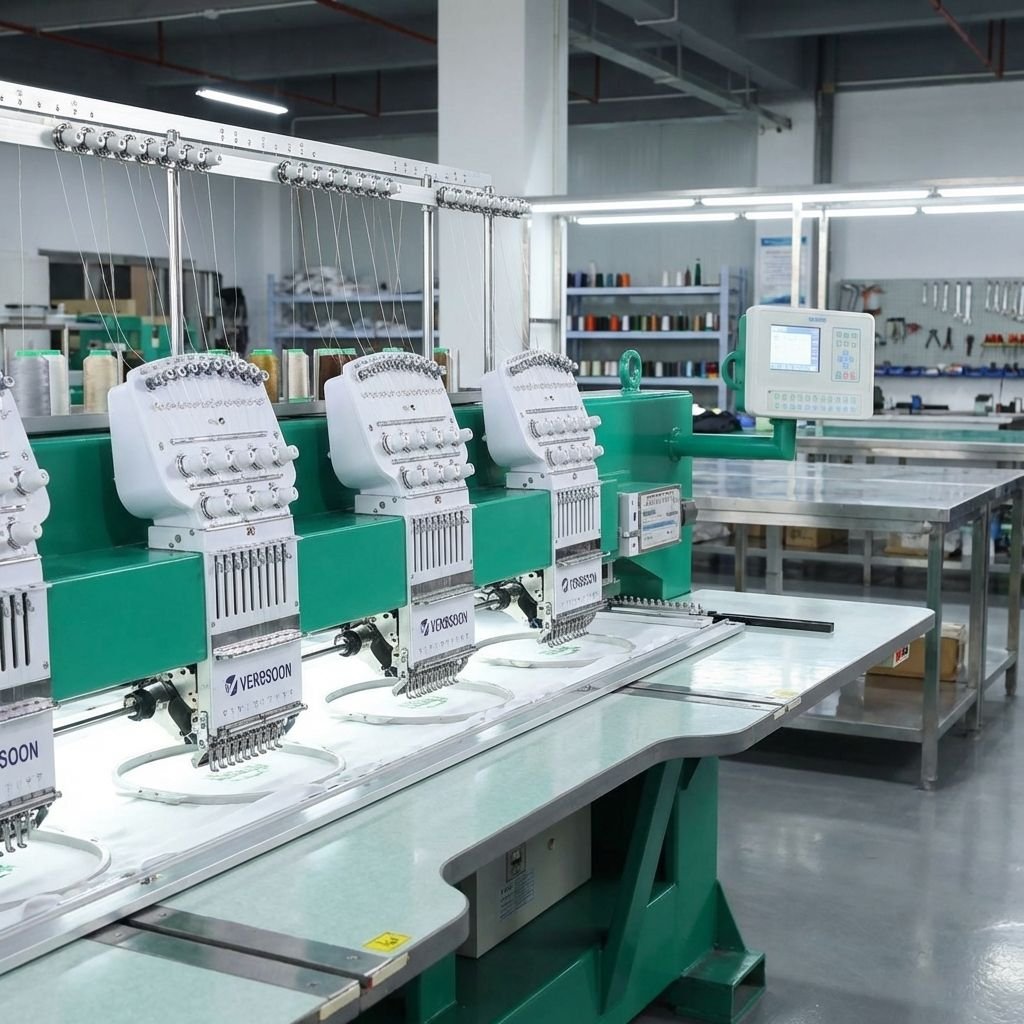

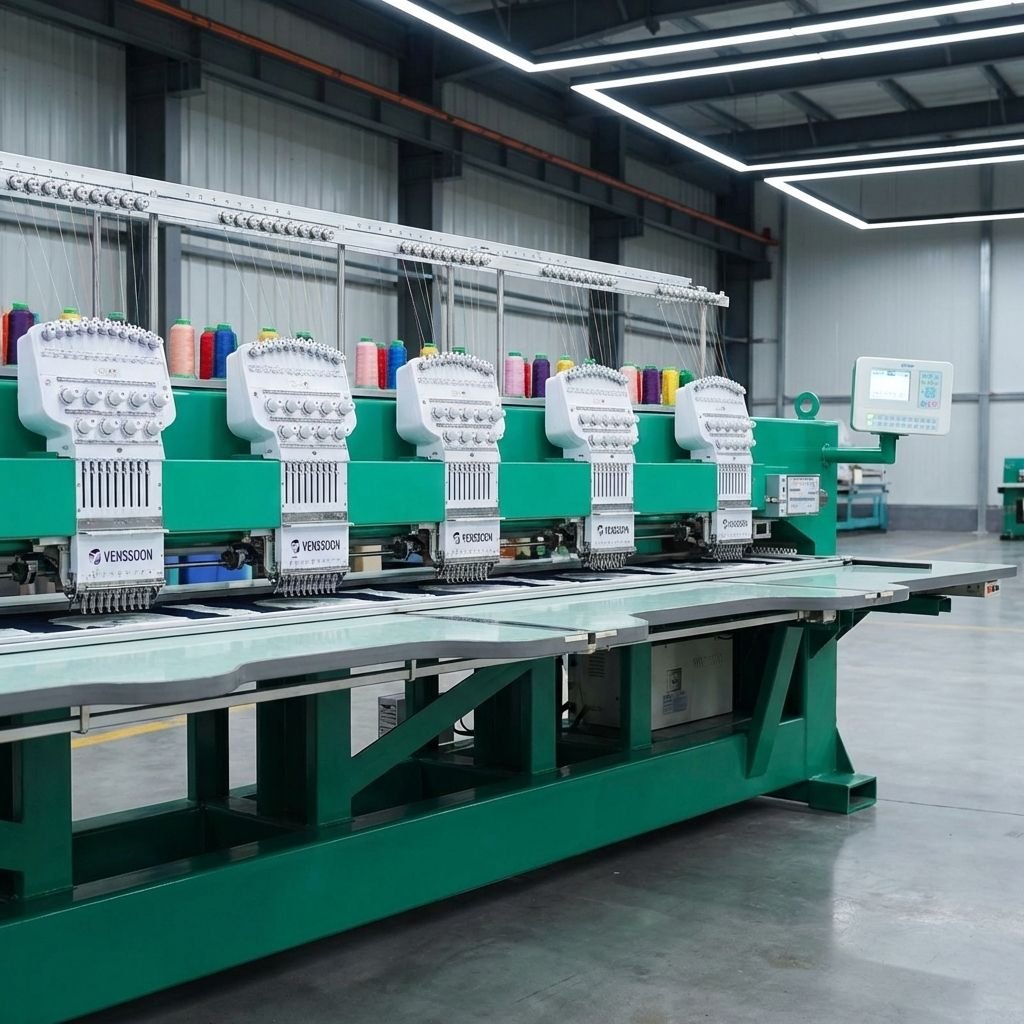

• This multi head flat bed embroidery machine is best for large scale production to set up apparel and garment manufacturing unit, This machine is best for embroidery work on saree, kurtis, etc. Large embroidery area can be use for big fabric for embroidery work.

Machine Features-

• Double beam design to reinforce machine stability and reduce vibration

• Double belt system allows for higher torque, less noise and easier maintenance

• Reinforced square guide rails allow for higher impact resistance and durability

• Leveling feet pre-mounted in the factory for easy transportation and installation

• Double lighting system for better visibility

• Suitable for embroidery on flats, caps, finished garments and more

• Perfect for established and growing embroidery businesses

• 10-inch or 15-inch HD LCD touch-screen panel

• Newly developed small sewing arm for high-quality embroidery on caps and small items

• Heavy duty steel stand with wheels to ensure stability and mobility

• Maximum speed: 1,000 stitches per minute

• Memory capacity: 100 million stitches or 1000 designs

• Environmentally friendly packaging

• USB input for design transfer.

• Built-in universal power supply 110V/60Hz and 200V/50Hz (self adaptable worldwide)

• All servo motor control for best result.

• Emergency stop button

• Automatic thread trimmer

• Advance Thread break detection

• Recessed USB port to protect USB flash drive

• Machine reads multiple design formats, such as DST, DSB and more

• New embroidery frame positioning board makes changing embroidery frames easier

• Automatic memory retention.

Technical Specification-

• Machine Name: FPA Series / FPB Series / FPC Series

• Model: Available up to 40 Head

• Brand: Ricoma

• Panel: High-Definition True-Color Dahao 10” LCD Touch Screen (A18 / A58 / A98 Computer)

• Heads: 2 - 40 heads

• Needles: 6 / 9 / 12 / 15

• Net Weight: 2000kg - 5000kg

• Embroidery Area: 300 x 300 x 700mm | 400 x 400 x 800mm (Can be customised)

• Maximum Speed 1200 spm

• Voltage: 90-240 v

• Power Consumption: 0.8kw - 3.0kw

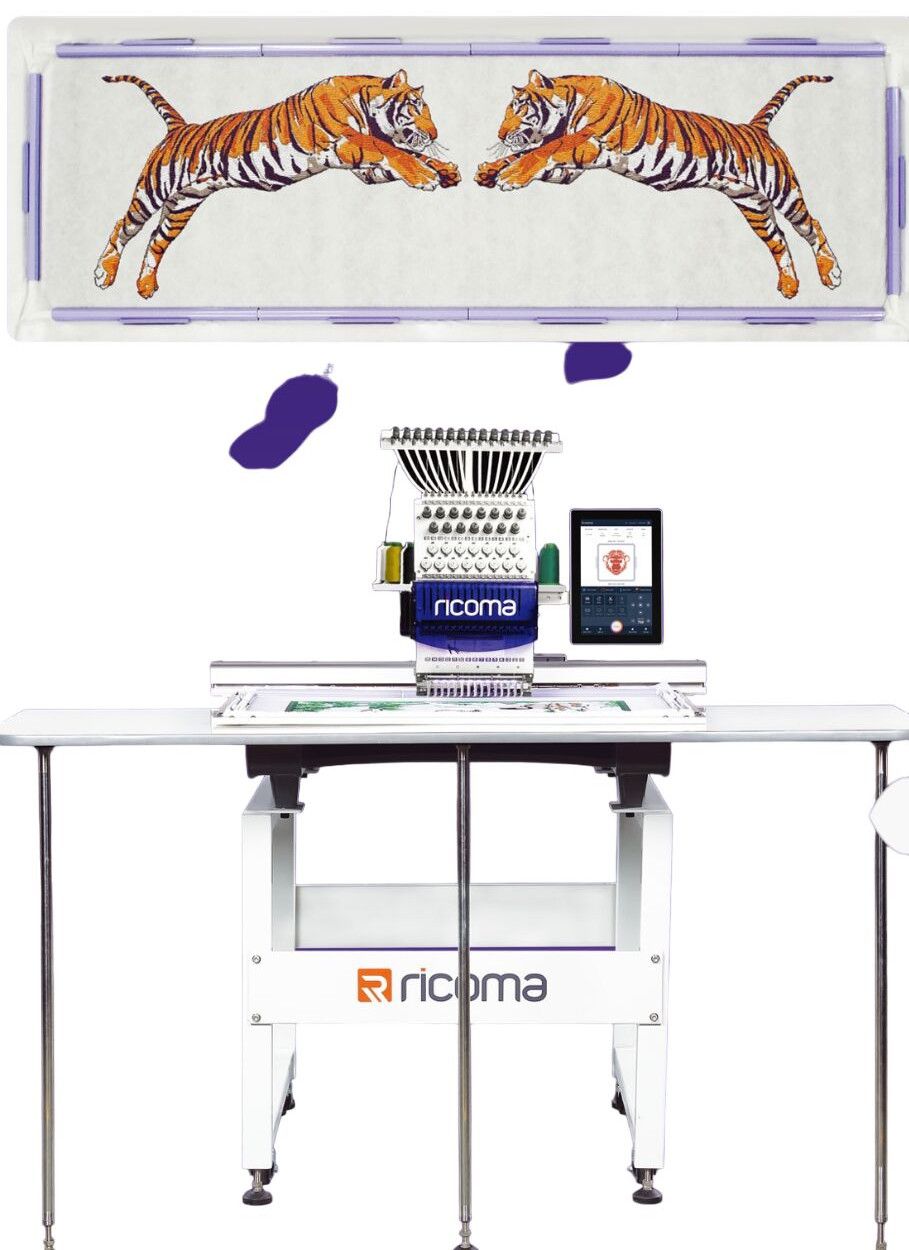

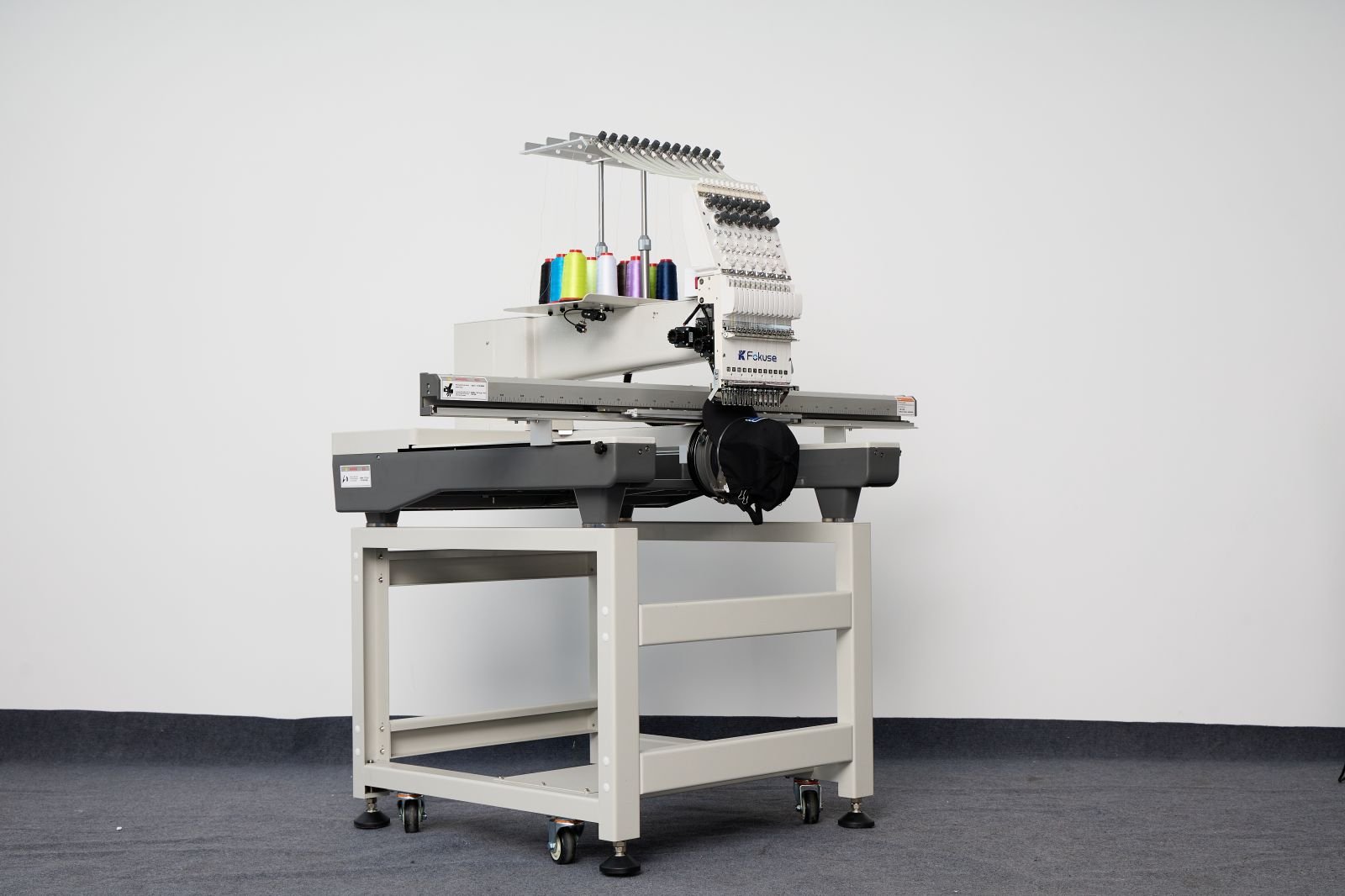

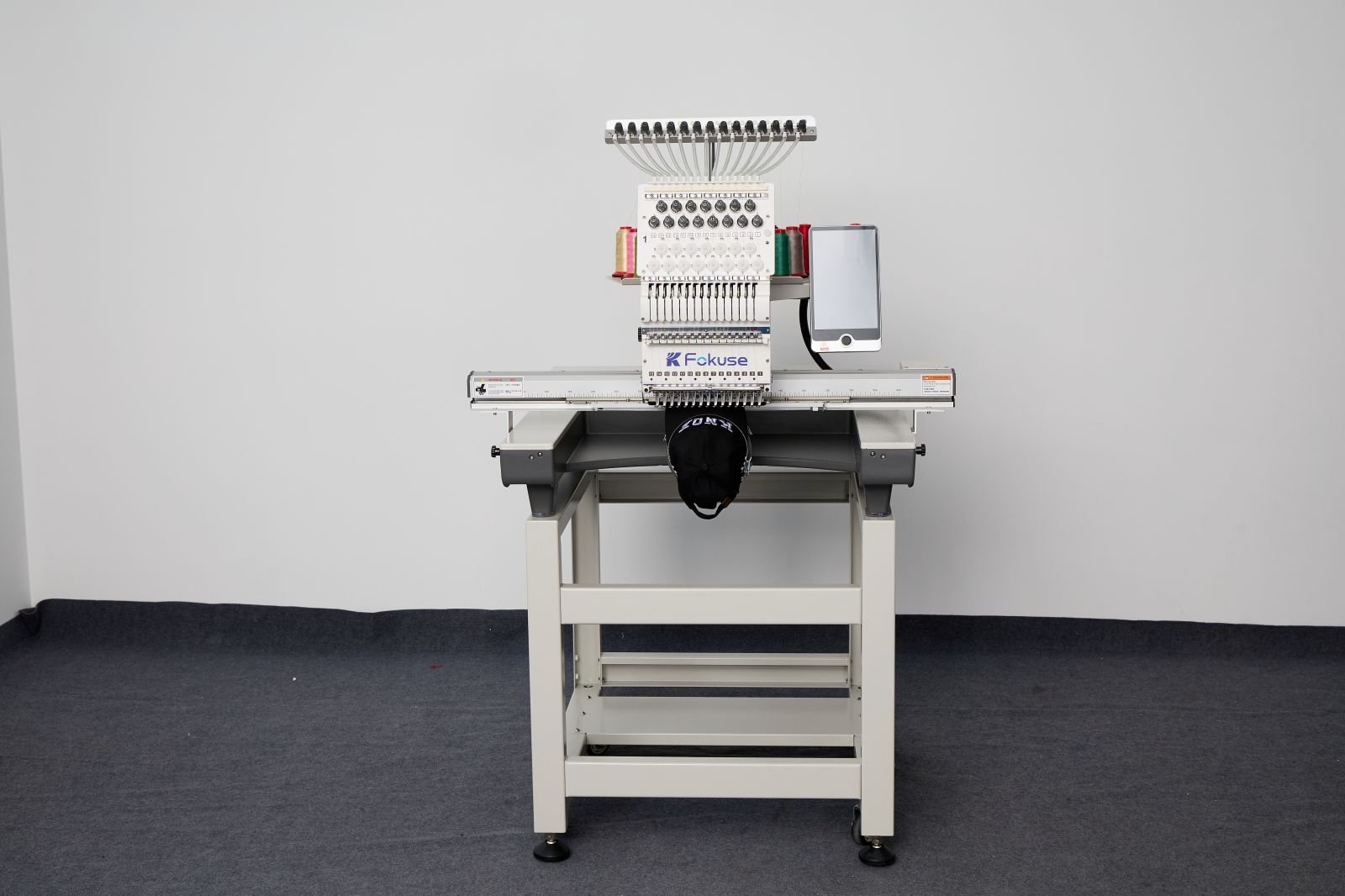

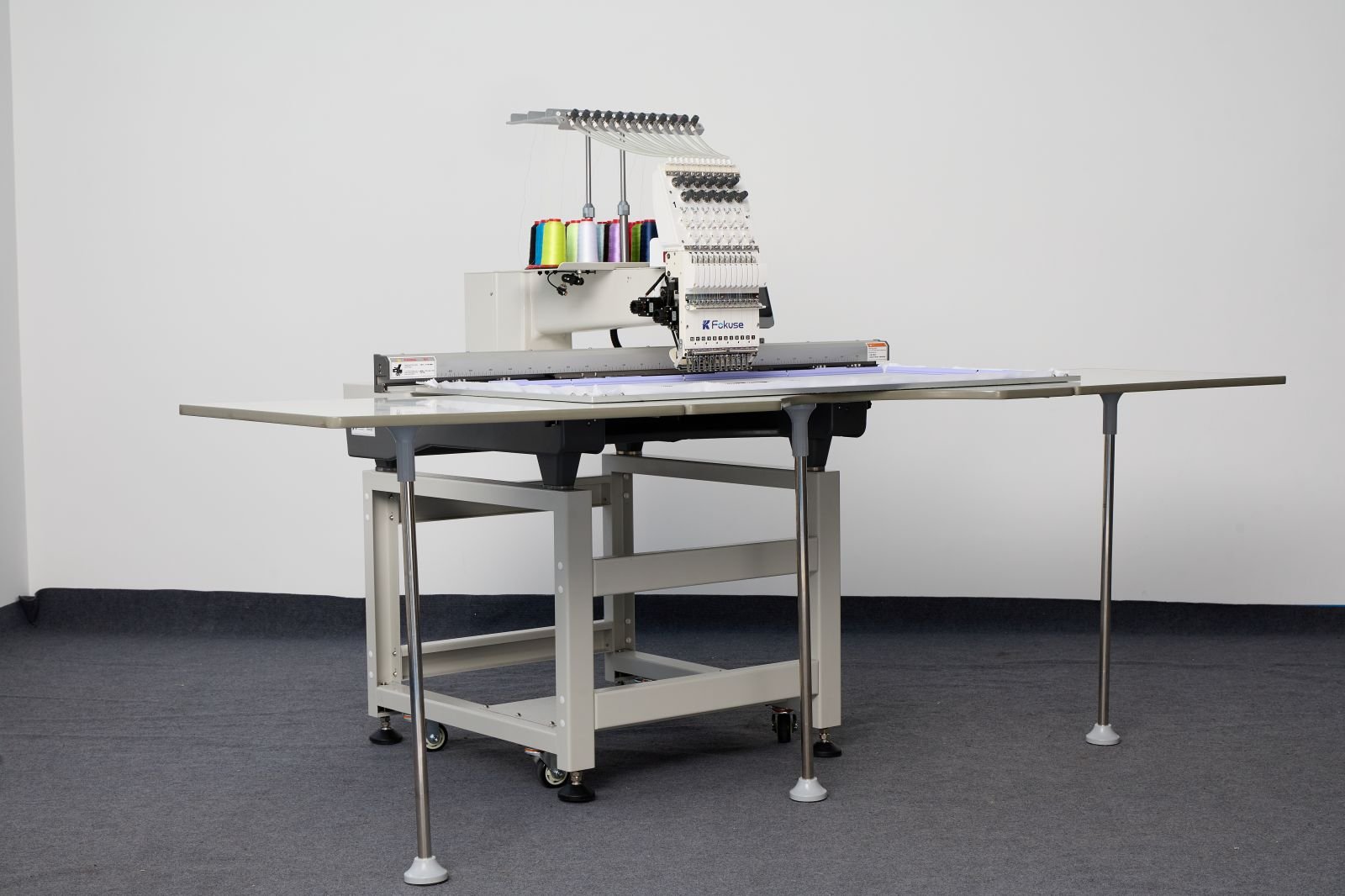

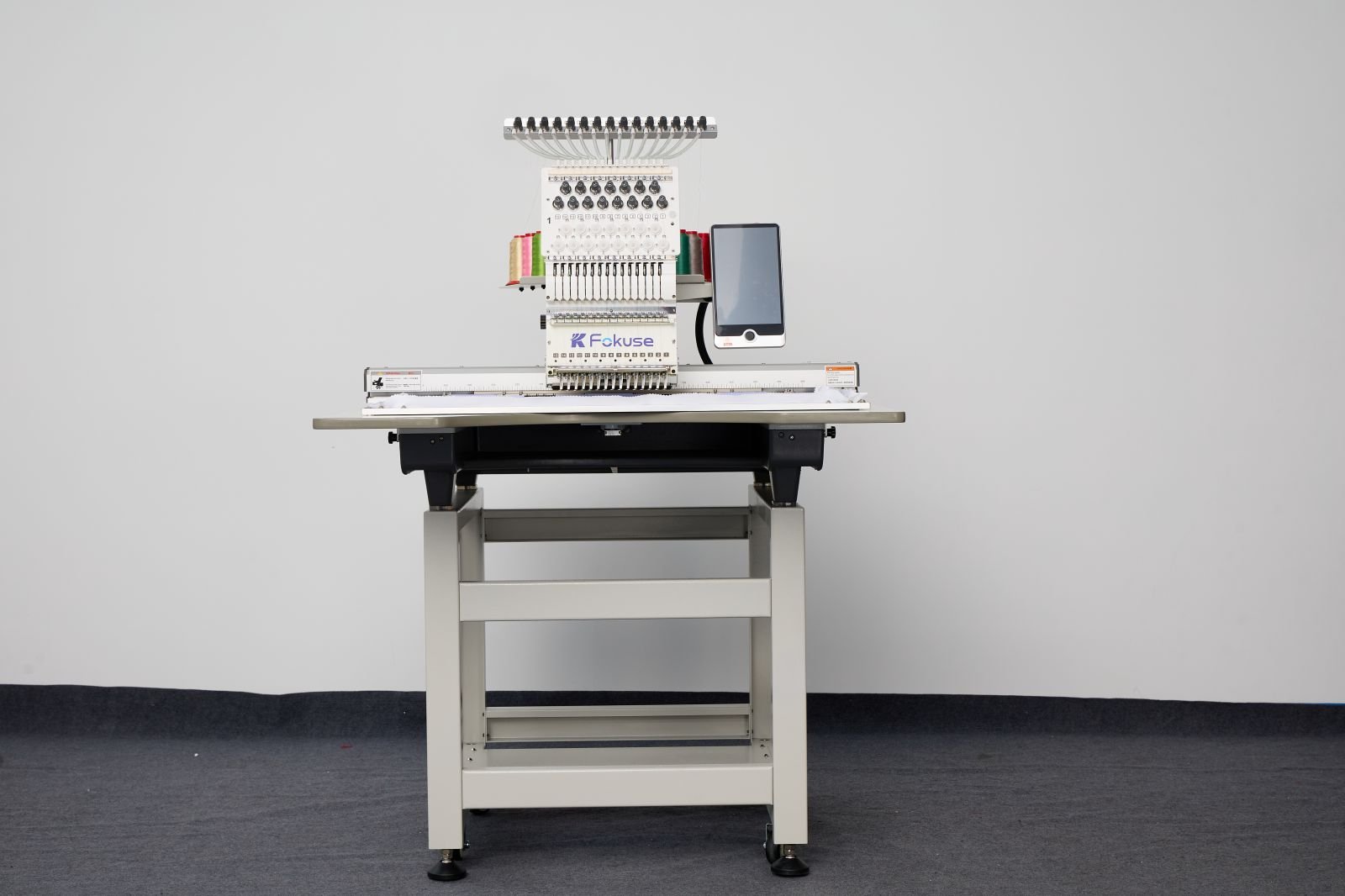

• This SWD series single head embroidery machine is best for small scale and medium scale production like boutique business or factory production for embroidery work on all kind of readymade garments, caps, bags, large fabric like blouse, saree, kurtis, etc. This embroidery machine is perfect series for all kind of embroidery work by using this single head embroidery machine.

Machine Features-

• Suitable for embroidery on flats, caps, finished garments and more!

• Perfect for small and established businesses alike

• High-Definition True-Color 10.1-inch LCD Touch Screen

• Maximum embroidery area: 800 x 500 mm (31.5 x 19.7 in)

• Largest embroidery area in the industry!

• Maximum speed: 1000 spm

• Large memory capacity: 100 million stitches or 1000 designs

• Machine reads multiple design formats such as DST, DSB, TBF and more

• Wide angle cap system: 270°

• Smaller sewing arm greatly improves the performance of cap embroidery and embroidery on small items

• Heavy-duty steel stand with wheels for both stability and mobility

• Multiple hoop sizes for a variety of embroidery needs

• Automatic color change

• Automatic thread trimmer

• Reinforced upper thread clamp to ensure stable trimming

• Thread break detection

• Networkable and Wi-Fi capable

• Design transfer via Wi-Fi from Chroma software to 10S panel

• Easily add appliqué, sequin, boring or cording

• Frame offset and frame outlining are available for easy appliqué embroidery

• Automatic memory retention

• One-step tracing button on home screen

• Adjustable control panel positioning for better visibility and comfort

• Built-in button from 172° to 196° under manual color change mode, a great help for machine maintenance

• Recessed USB port to protect USB flash drive

• Multiple languages: English, Chinese, Spanish

• Servo motor 150W – lowest power consumption in the industry!

• Built-in universal power supply, 110V/60Hz and 220V/50Hz selfadaptable worldwide

• External 100° button and trimming button.

• DC36V micro-step motor for X & Y axis driving ensures low noise and less vibration

• Compatible with optional laser tracing device.

• Front LED lamp provides better visibility and protection for eyes against strong light during threading

• Optional stepper motor closed loop configuration allows the embroidery to appear more three dimensional

• Environmentally friendly packaging

• Perfect for mass production of patches

Technical Specification-

• Machine Name: SWD-10S

• Model: SWD-1501-10S | SWD-1201-10S

• Brand: Ricoma

• Panel: High-Definition True-Color 10.1” LCD Touch Screen

• Heads: 1

• Needles: 12/15

• Machine Size With Stand (L*W*H): 1040 x 950 x 1710 mm (40.9 x 37.4 x 67.3 in)

• Net Weight: 165 kgs (363.8 lbs)

• Gross Weight: 260 kgs (573.2 lbs)

• Embroidery Area: 800 x 500 mm (31.5 x 19.7 in) or 1200 x 500mm

• Cap Embroidery Area: 270°

• Maximum Speed 1000 spm

• Voltage: 90-240 v

• Power Consumption: 0.2 kw

• Memory Capacity: 100 million stitches or 1000 designs
