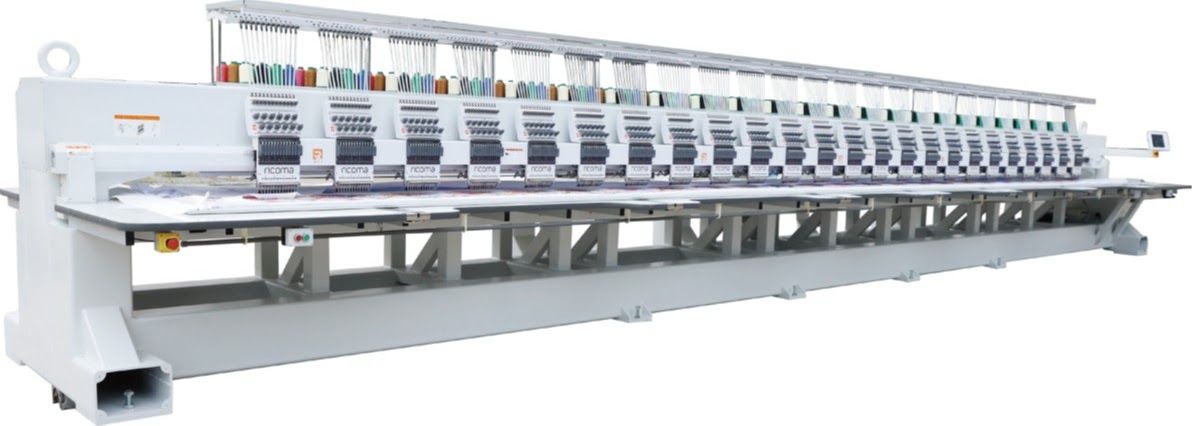

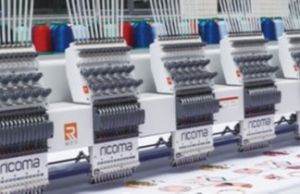

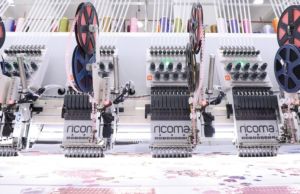

Ricoma Multi Head Embroidery Machine

• This multi head flat bed embroidery machine is best for large scale production to set up apparel and garment manufacturing unit, This machine is best for embroidery work on saree, kurtis, etc. Large embroidery area can be use for big fabric for embroidery work.

Machine Features-

• Double beam design to reinforce machine stability and reduce vibration

• Double belt system allows for higher torque, less noise and easier maintenance

• Reinforced square guide rails allow for higher impact resistance and durability

• Leveling feet pre-mounted in the factory for easy transportation and installation

• Double lighting system for better visibility

• Suitable for embroidery on flats, caps, finished garments and more

• Perfect for established and growing embroidery businesses

• 10-inch or 15-inch HD LCD touch-screen panel

• Newly developed small sewing arm for high-quality embroidery on caps and small items

• Heavy duty steel stand with wheels to ensure stability and mobility

• Maximum speed: 1,000 stitches per minute

• Memory capacity: 100 million stitches or 1000 designs

• Environmentally friendly packaging

• USB input for design transfer.

• Built-in universal power supply 110V/60Hz and 200V/50Hz (self adaptable worldwide)

• All servo motor control for best result.

• Emergency stop button

• Automatic thread trimmer

• Advance Thread break detection

• Recessed USB port to protect USB flash drive

• Machine reads multiple design formats, such as DST, DSB and more

• New embroidery frame positioning board makes changing embroidery frames easier

• Automatic memory retention.

Technical Specification-

• Machine Name: FPA Series / FPB Series / FPC Series

• Model: Available up to 40 Head

• Brand: Ricoma

• Panel: High-Definition True-Color Dahao 10” LCD Touch Screen (A18 / A58 / A98 Computer)

• Heads: 2 - 40 heads

• Needles: 6 / 9 / 12 / 15

• Net Weight: 2000kg - 5000kg

• Embroidery Area: 300 x 300 x 700mm | 400 x 400 x 800mm (Can be customised)

• Maximum Speed 1200 spm

• Voltage: 90-240 v

• Power Consumption: 0.8kw - 3.0kw
