Quilting Machines

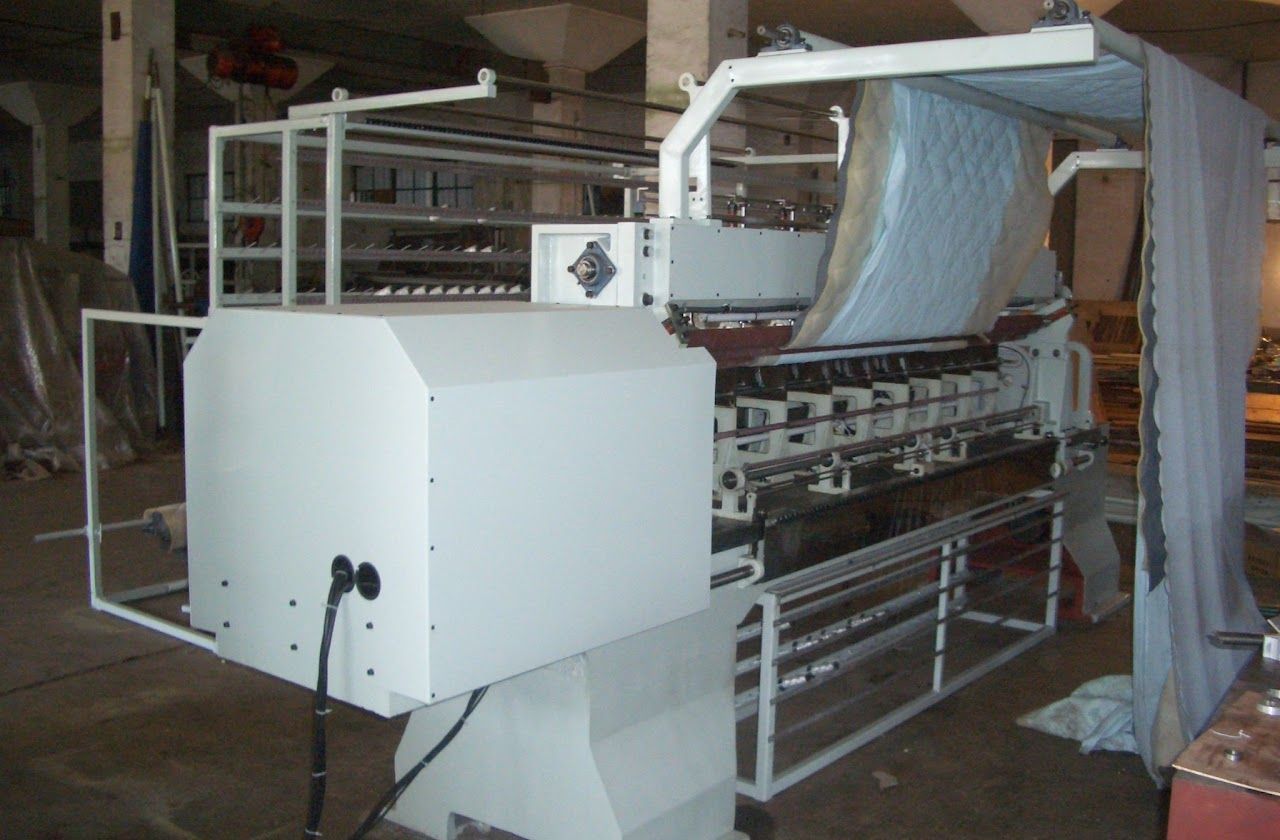

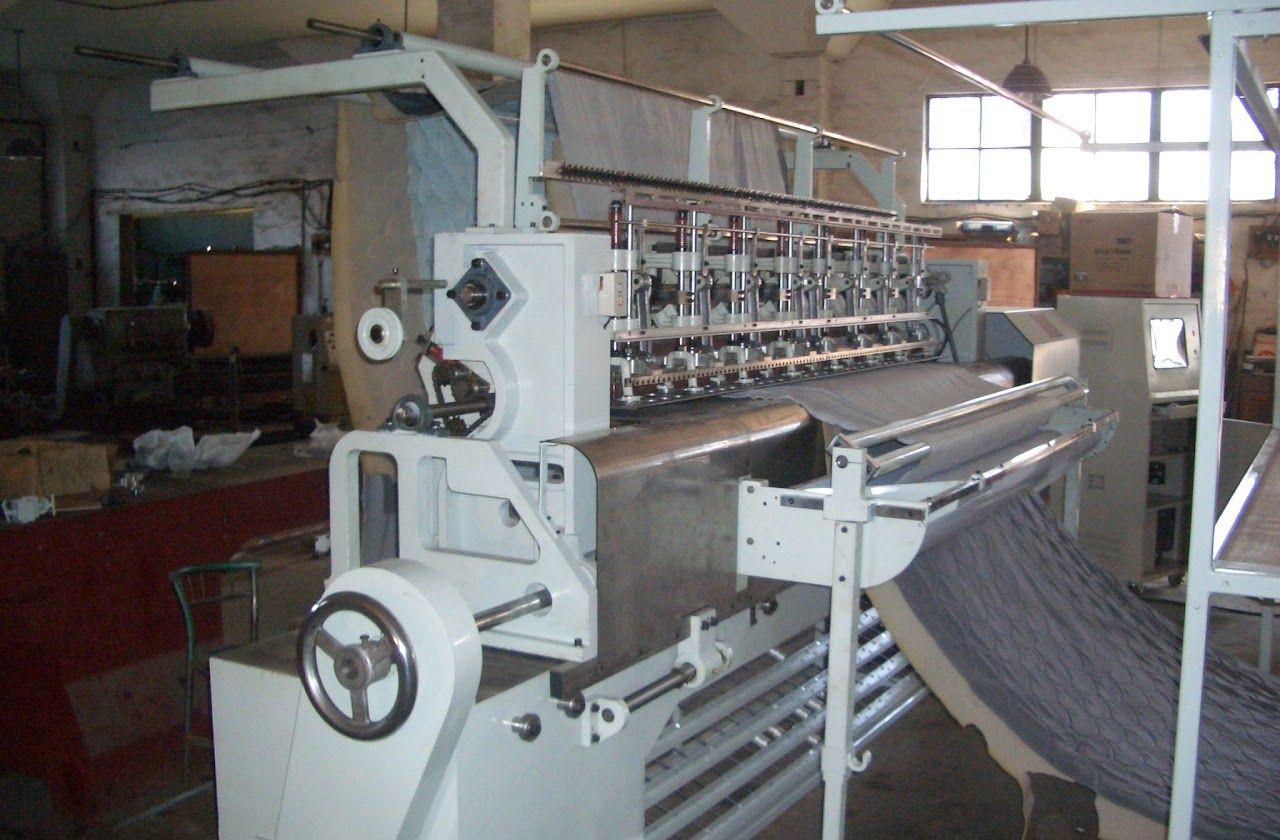

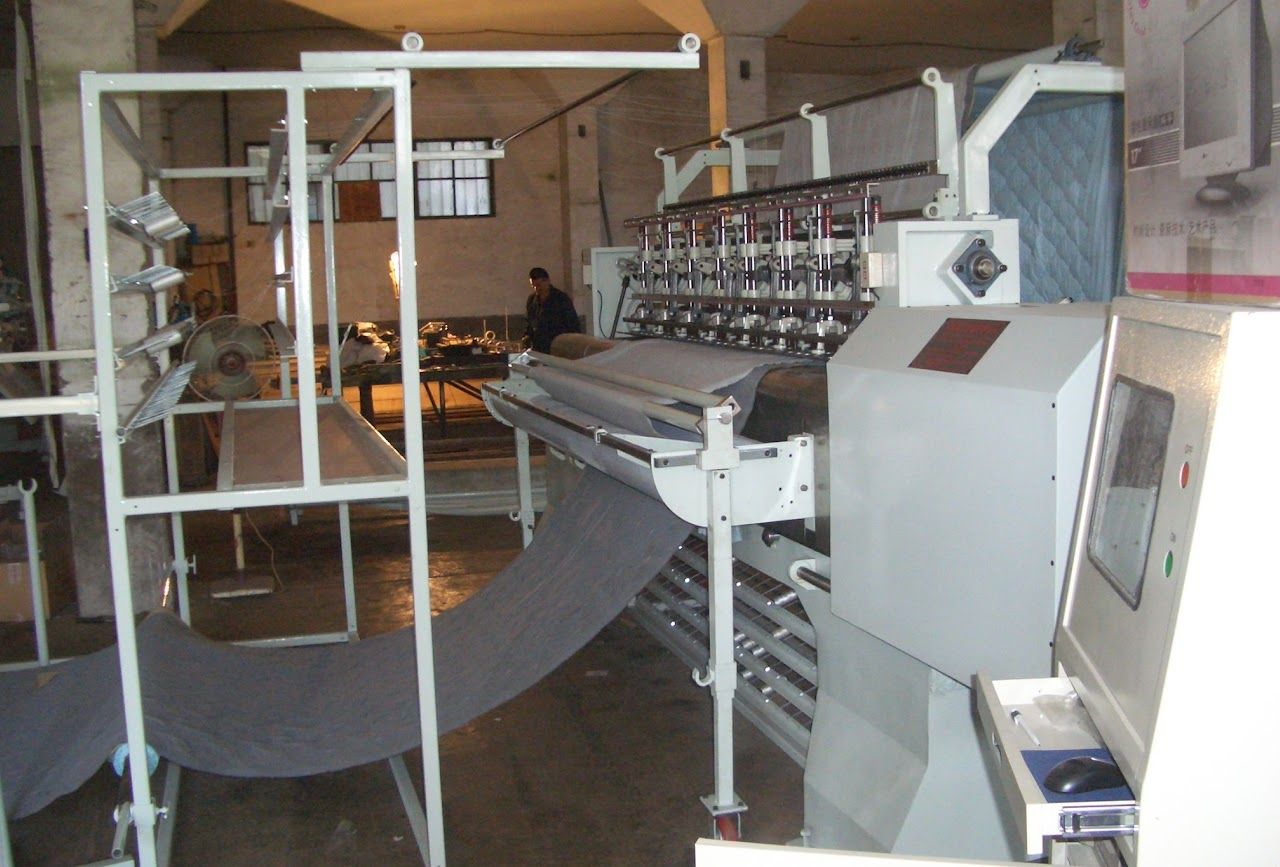

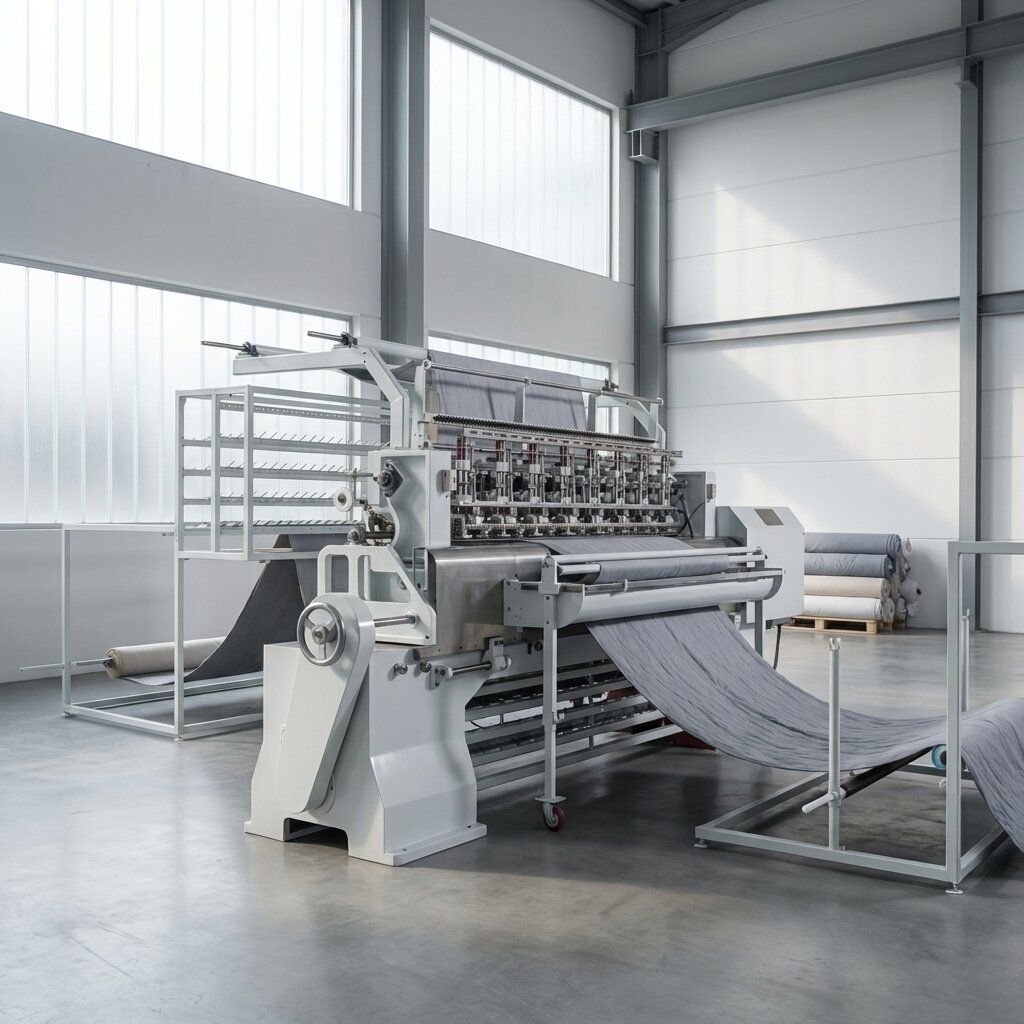

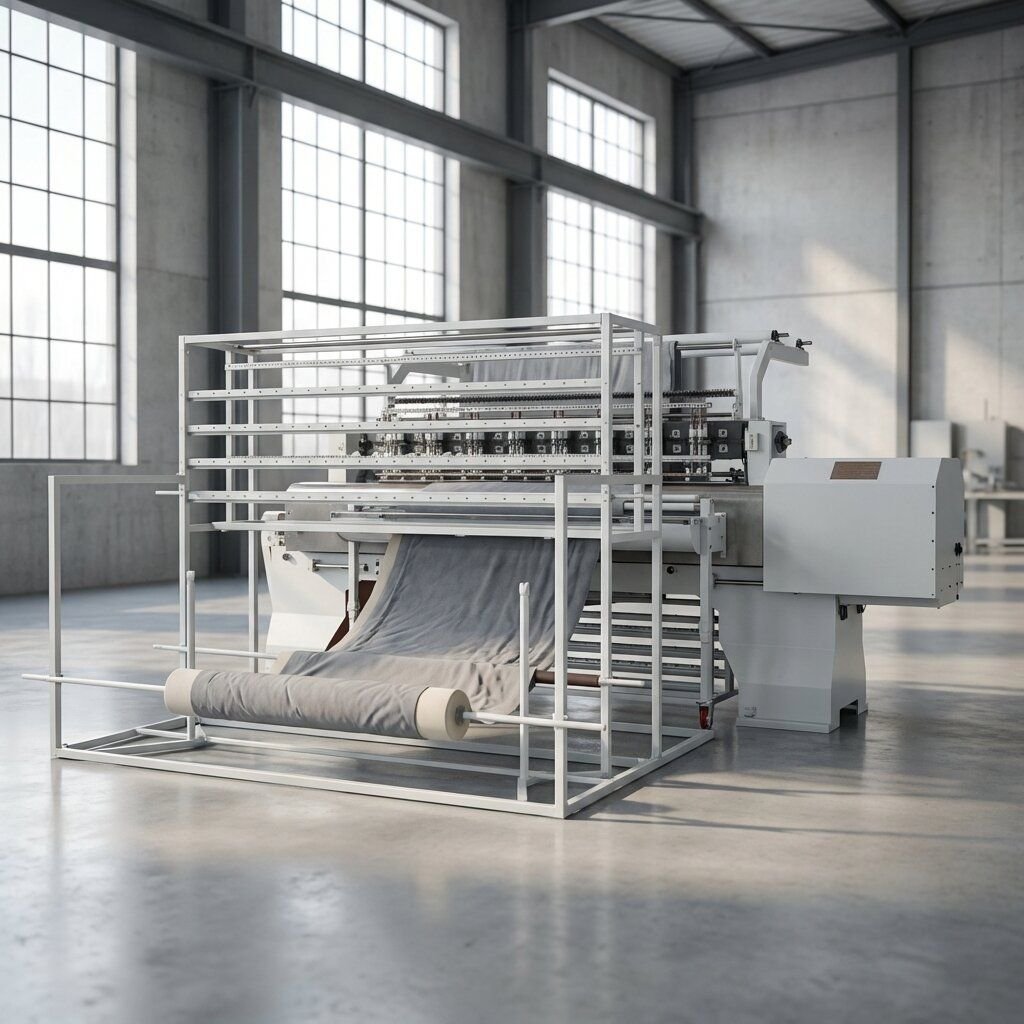

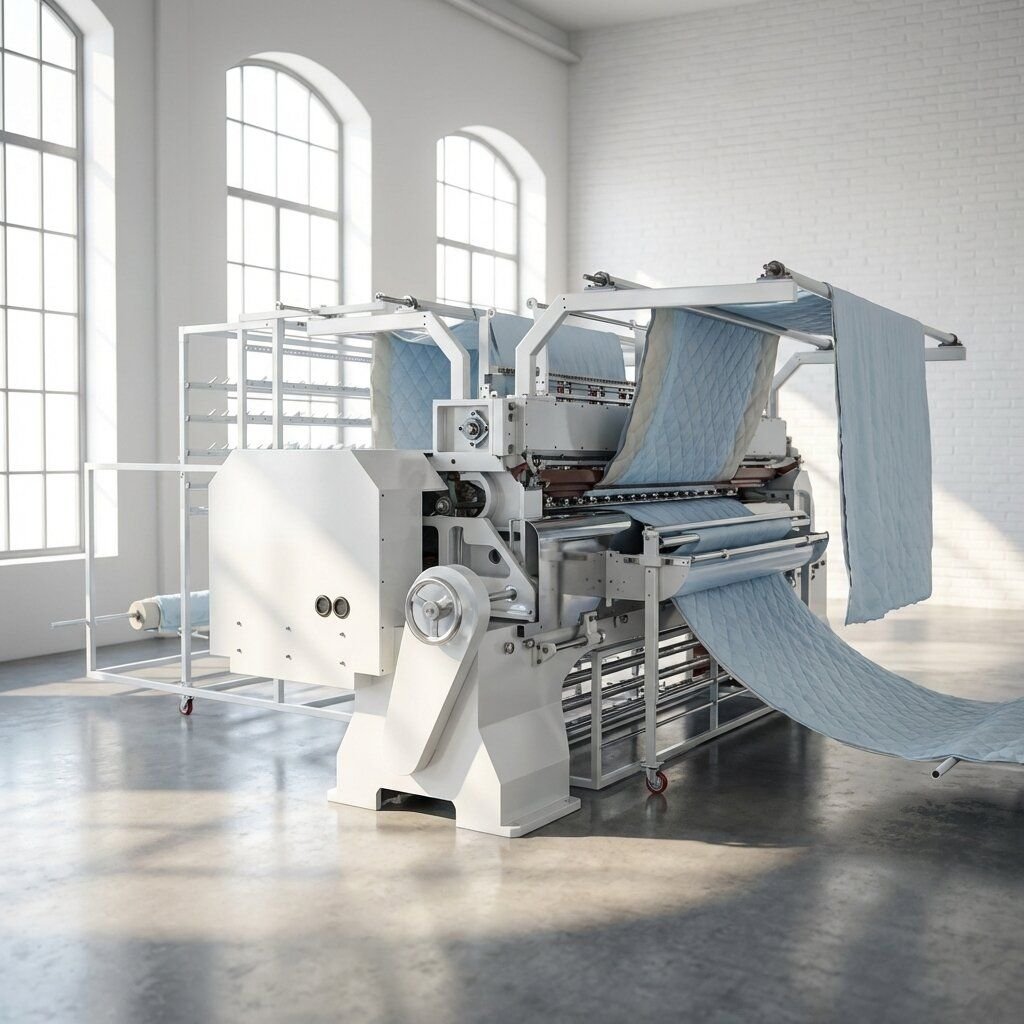

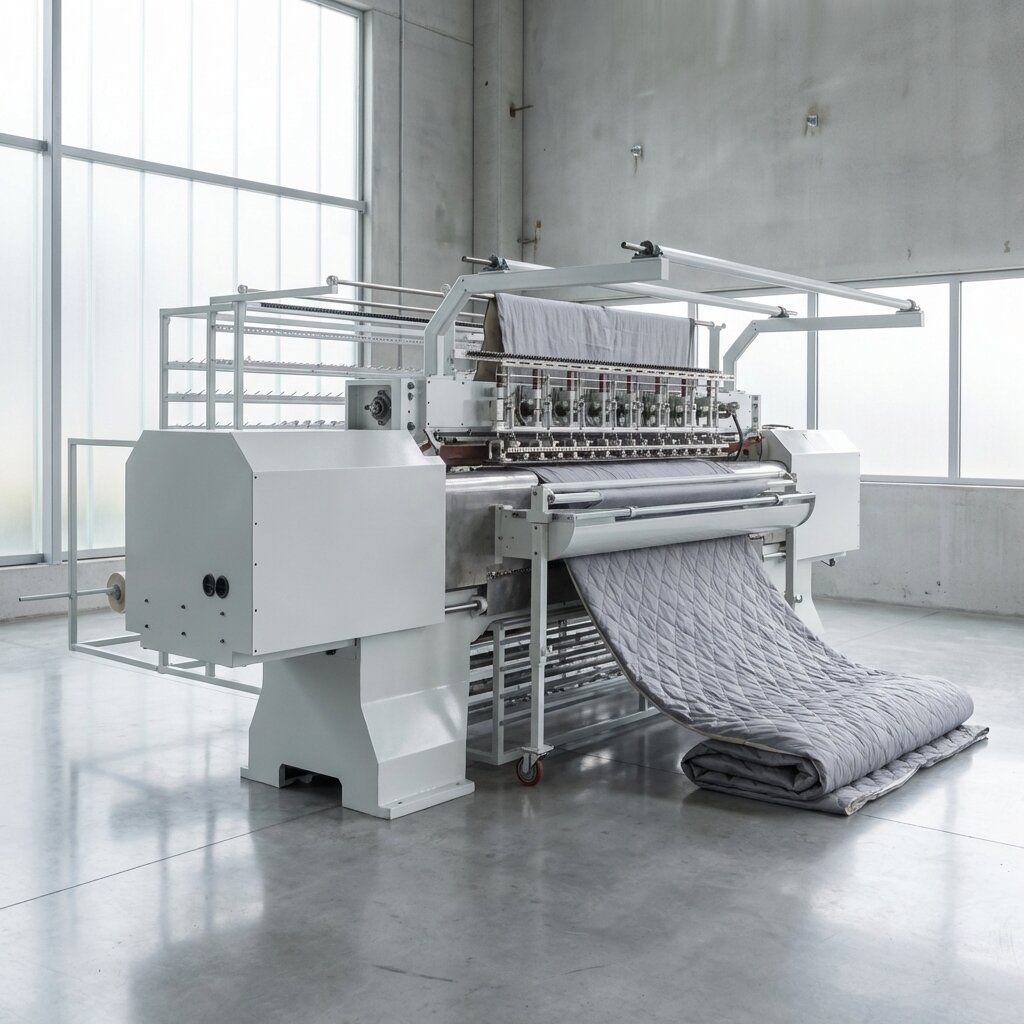

• The looper quilting machine is specially designed for making mattress covers, offering precision and efficiency in stitching large fabric pieces to create durable and comfortable mattress covers. Equipped with latest feature with wide range of quilting patterns for making attractive mattress covers.

Machine Features-

• Adopt advanced Japanese technology.

• Needle bar and pressing block take the double rocker avoid the materials being soiled by lube.

• High rigidity machine body, perfect protecting equipment and steady-going control system.

• X、Y motors are driven by servo system, and principal axis takes frequency ports system.

• Test the working state of all sensors and computer in real time.

• Auto-stop machine when the bottom or upper thread broke by infrared. Auto lift needle and adjust the speed by computer.

• Tack & Jump design can make.

• Auto faults tips for servo motor system and transducer, which is convenient to eliminate problems.

• 360°quilting and limitless multi-span and independent quilting.

• Steady running, high speed, low noise, very thick material with precise quilting.

• Ringing notice when start machine.

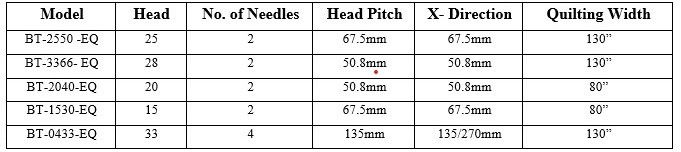

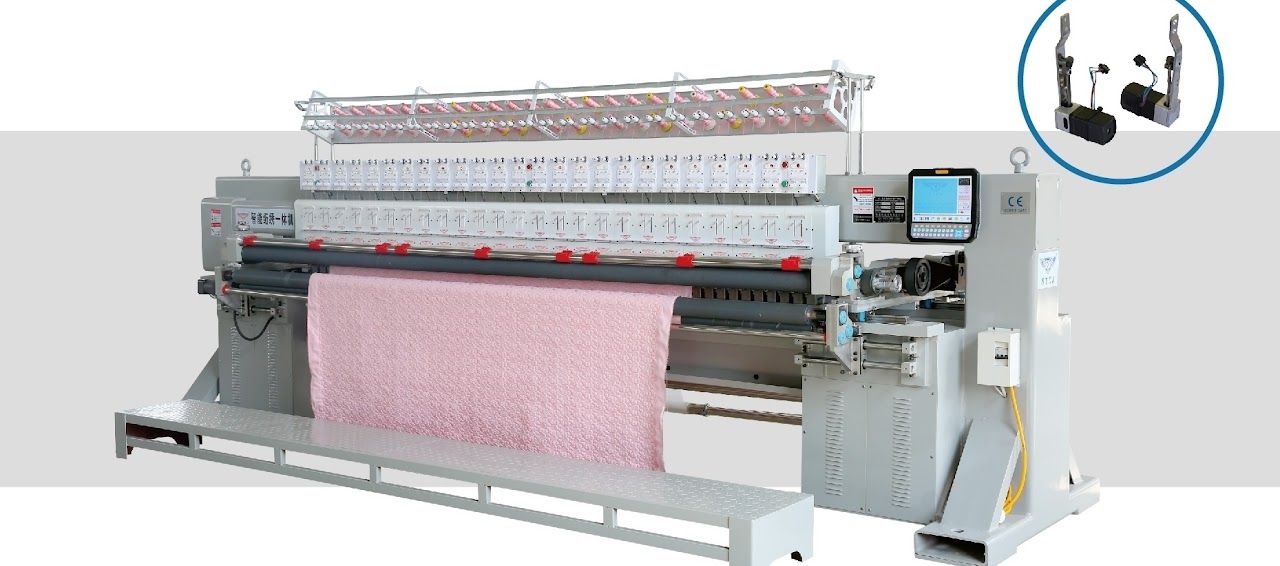

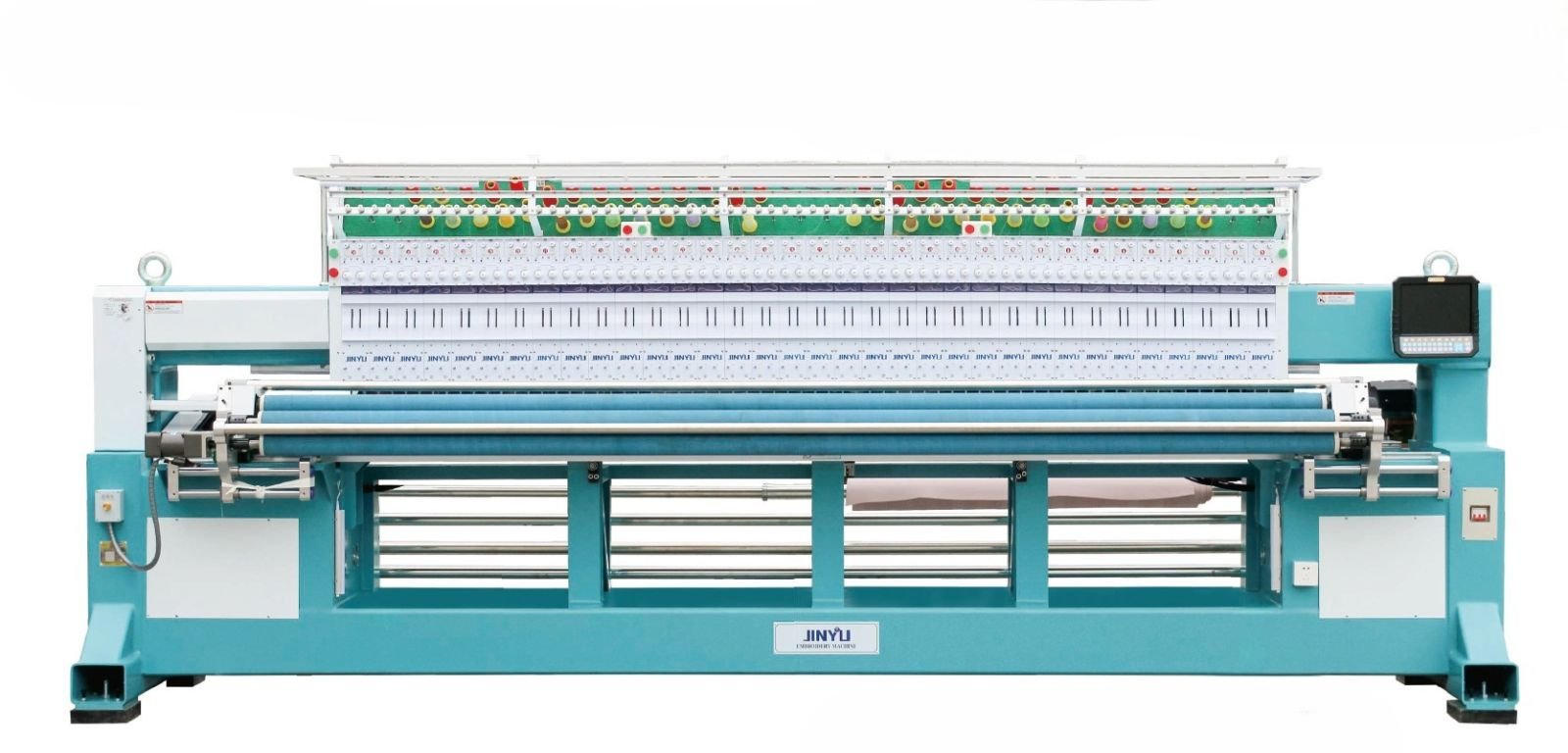

• This quilting & embroidery machine is specially designed for home textile industry, it can be do quilting & embroidery work at the same time of working. Equipped with latest & advance features making quality products and can be use fabric and artificial rexene for making wide range of home textile products.

Machine Features -

• Adopted Japanese Technology.

• X-Y driven by servo motor, main motor spindle clutch motor.

• Automatic color change, arbitrary head for quilting and embroidery.

• Continuous quilting of independent pattern, skipping quilting function unlimited and continuous quilting and embroidery in Y direction, front and rear automatic tensioning systems.

• Support USB disk and readable Tajima, Barudan, ZKS, SWF embroidery format.

• Independent presser foot operation to make the product have three-dimensional aesthetics rolling shaft design in Y direction, cloth can be continuously sewn or quilted Simple, convenient and feasible operation.

• Automatic thread break detects, even at high speed so no need to look around on machine.

• Hard drive and software protection if sudden power cut.

• Self-speed adjusts on running time.

• Speed Down to 200rpm and up to 850rpm/min.

• Mechanical and computer systems are designed user-friendly so there is no special requirement, and it is very easy to operate.

Technical specification:-

• Max Speed: 850rpm

• Stitch Length: 0.8 ~ 12.7mm

• Store Pattern in Computer: 50EA

• Rotary Hook: Japan

• Power: 5.0kw

• Rated Power: 380VAC, 3Phase, 50/60Hz.

• Weight: 4000kg

• Dimension (L*W*H): 5150* 1860* 1450mm

• This multi needle shuttle quilting machine is specialized for making textile and garment products jackets, gloves, and many more products. Fully computerized and equipped with all servo motors for making productivity and quality with wide range of quilting designs.

Machine Features-

• Adopted Japanese Technology.

• Needle row driven by aluminum alloy bar frame structure. Oil free sturdy and durable.

• Saddle roller adopted servo drive device and spindle frequency controlled.

• Saddle direction by rail movement, stable operation, flower shape is more accurate, lower breakage

• The bottom surface cloth separation bracket and saddle reduce machine load, feeding smoothly.

• Adjust speed by computer and maximum speed can reach 800rpm/min.

• Quilting thickness can be use 30mm.

• The stitch can be set 2mm– 8mm.

• 360-degree random quilting and limitless multi span and independent quilting patterns.

• Line breaks automatic stop.

• Infrared sensor makes sure more safety operation with automatic thread break stop.

• The machine runs smoothly, with low noise, high precision, low thread break rate and very easy to operate.

• This single-head quilting machine is designed specifically for creating home furnishing items such as quilts, pillow covers, and mattress covers, offering precision and efficiency. Its adjustable frames enable users to produce various sizes of products, making it a versatile solution for manufacturers and home crafters alike.

Features-

• Adopted Japanese Technology.

• Full Servo Motor Controlled.

• Touch panel with editable sizes & configurations.

• Automatic stop when thread break and thread breakpoint repair.

• Automatic return to origin when frame complete.

• Auto Thread trimming system.

• Any error in machine show on machine display, until the problem has solved.

• Automatic Oil Lubricating System.

• Lifting Head Automatic for Frame Adjustment up to 15cm.

• Inbuilt 350EA Designs for your choice, and customized designs also can be upload by USB drive.

• Machine very easy to operate and takes less maintenance.

Technical Specification-

• Model: BT-2225-S / BT-2528-S / BT-3032-S

• Frame Size: 2200 x 2500mm / 2500 x 2800mm / 3000 x 3200mm

• Needle  Drop Size: 2000 x 2300mm / 2300 x 2600mm / 2800 x 3000mm

• Sewing Head: Japan with Big Rotary Hook

• Quilting Thickness: 800GSM

• Working Speed: 2200rpm

• Power: 1.5kw / 2.0kw / 2.55kw

• Voltage: 220VAC / single Phase / 50Hz

• Weight: 800kg / 1000kg / 1500kg

• Dimensions: 3100 x 3000 x 1400mm / 3400 x 3300 x 1400mm / 3900 x 3800 x 1400mm

Technical Specification-

• Model: BT-2628-HS / BT-3232-HS / BT-3235-HS

• Frame Size: 2600 x 2800mm / 3200 x 3200mm / 3200 x 3500mm

• Needle  Drop Size: 2400 x 2600mm / 3000 x 3000mm / 3000 x 3300mm

• Sewing Head: Japan with Big Rotary Hook

• Quilting Thickness: 1200GSM

• Working Speed: 2800rpm

• Power: 2.0kw / 2.5kw / 3.2kw

• Voltage: 220VAC / single Phase / 50Hz

• Weight: 2500kg / 2800kg / 3200kg

• Dimensions: 5200 x 4000 x 1600mm / 5600 x 4400 x 1600mm / 5900 x 4600 x 1600mm

Technical Specification-

• Model: BT-2628-I / BT-3232-I / BT-3235-I

• Frame Size: 2600 x 2800mm / 3200 x 3200mm / 3200 x 3500mm

• Needle  Drop Size: 2400 x 2600mm / 3000 x 3000mm / 3000 x 3300mm

• Sewing Head: Japan with Big Rotary Hook

• Quilting Thickness: 1200GSM

• Working Speed: 3200rpm

• Power: 2.0kw / 2.5kw / 3.2kw

• Voltage: 220VAC / single Phase / 50Hz

• Weight: 2500kg / 2800kg / 3200kg

• Dimensions: 5200 x 4000 x 1600mm / 5600 x 4400 x 1600mm / 5900 x 4600 x 1600mm
