Spring Manufacturing Machines

Machine Features-

• High speed assembling machine, operating speed can reach 8 rows/minute.

• None, single-sided or double-sided gluing are available.

• Parallel or nest gluing are available.

• Continuous or intermittent gluing are optional, help save glue.

• Easy to operate and maintain.

• Special protective device.

Technical Specification-

• Model: ZJ1R

• Brand: Qilin Mattress Machinery

• Speed: 7Lines/min

• Max. Non-Woven Width: ≤2200mm

• Pocket Spring Height: 60mm-280mm

• Power: 4.0kw

• Rated Power: 380VAC, 3Phase, 50/60Hz

• Air Consumption: about 1.5m3/min, 0.8mpa

• Gross Weight: 2000KG

• Dimension: 3300*1650*1800mm

• Packing Dimension: 3500*1860*2050mm

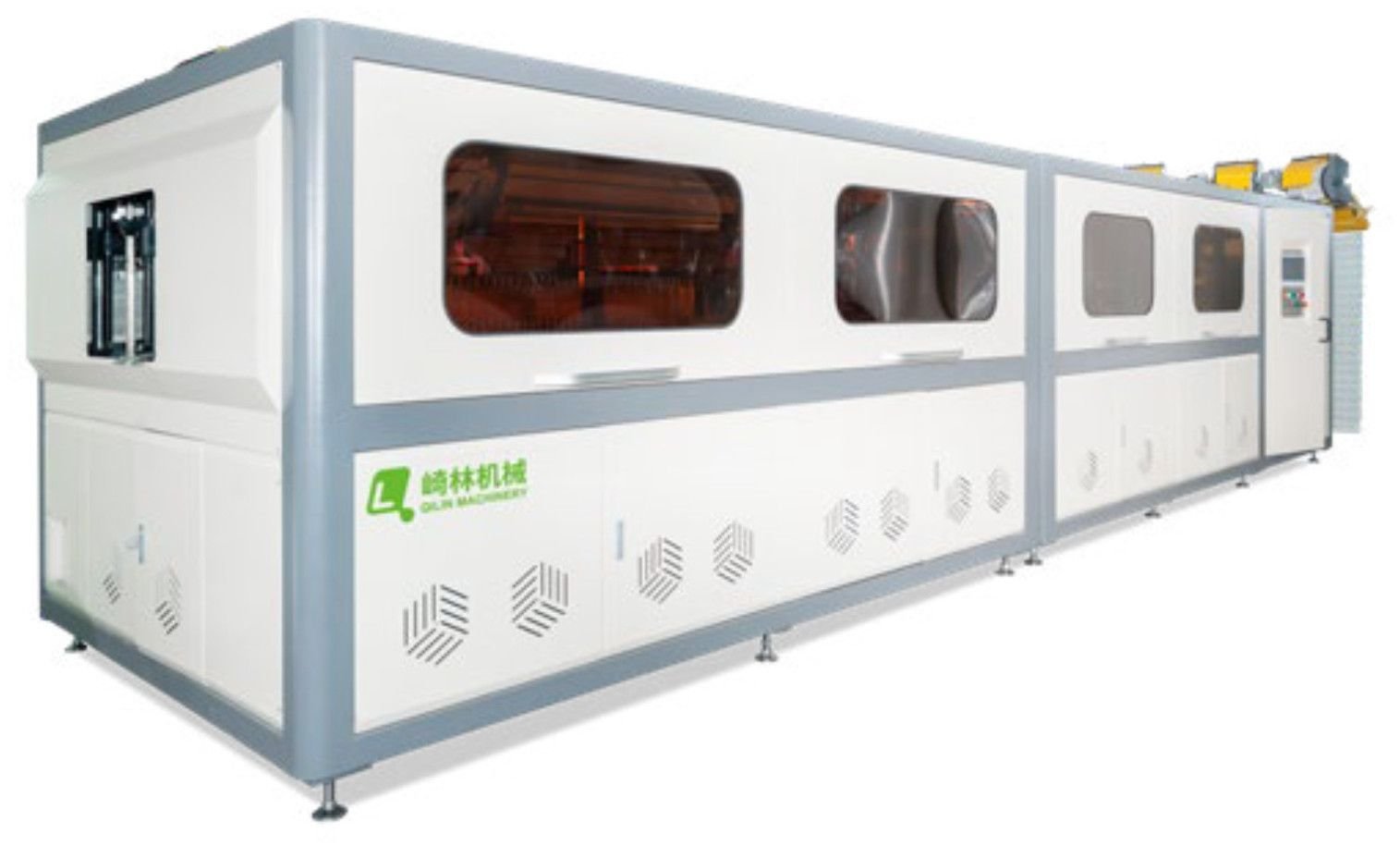

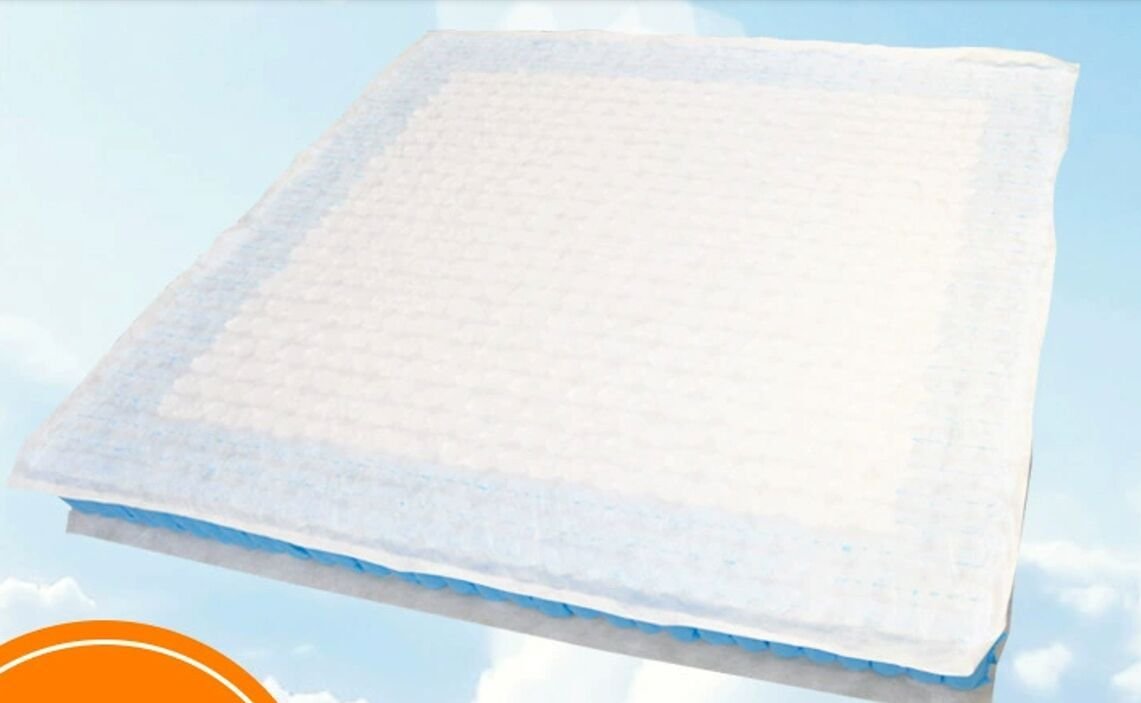

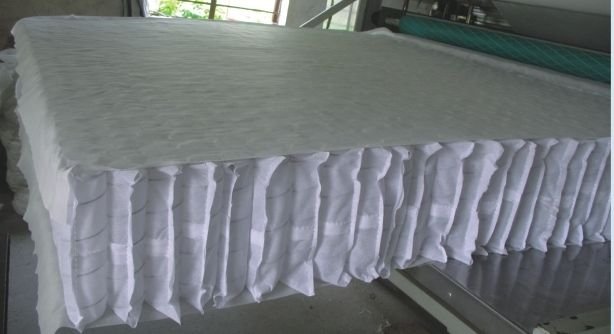

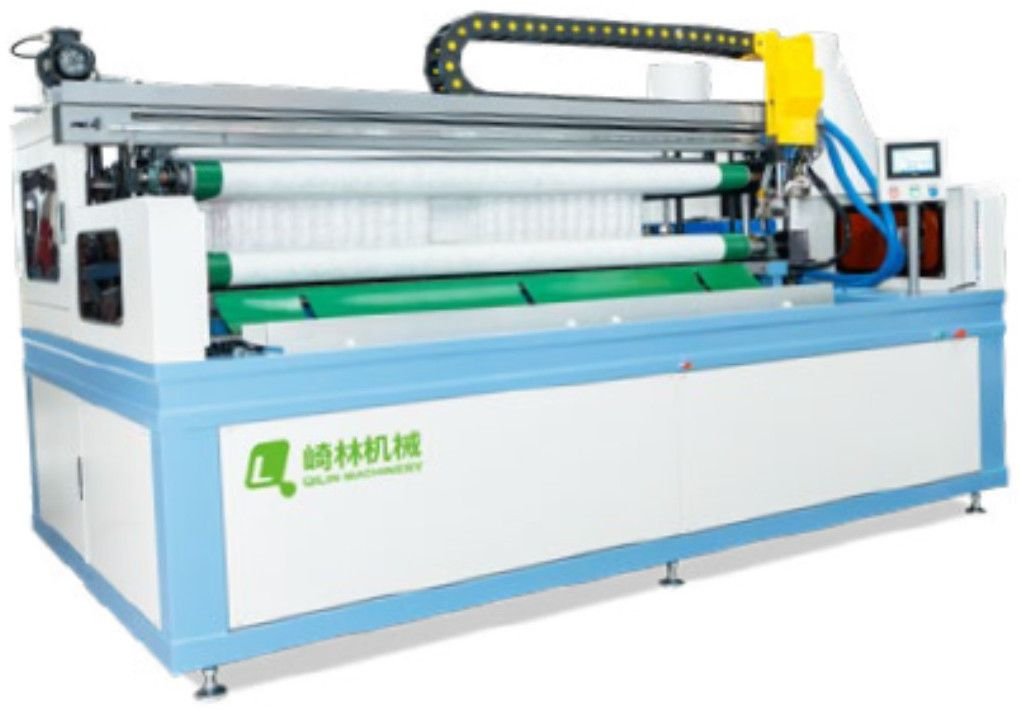

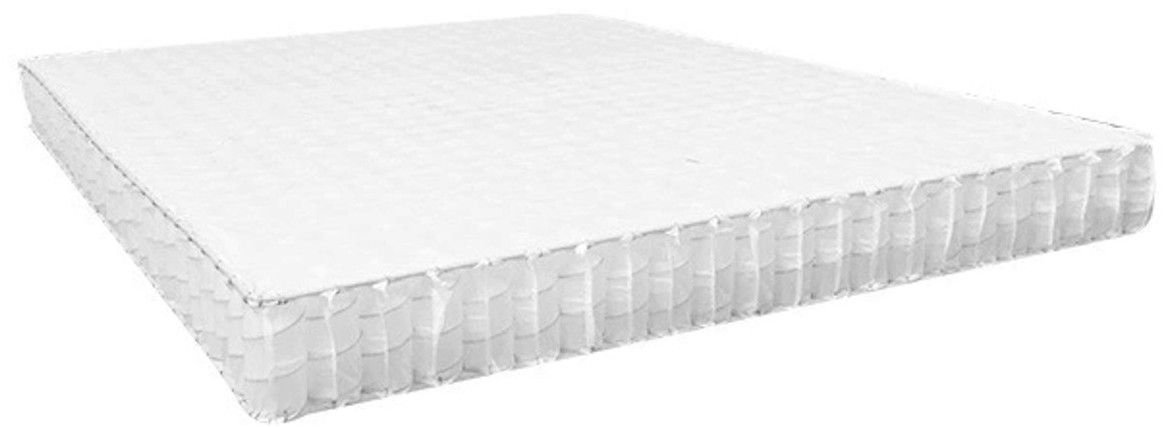

The fully automatic pocket spring assembly machine is currently a popular spring bed net bonding equipment in the industry. This machine is mainly used in the production line of pocket spring mattresses or pocket spring sofas. It can select and cut continuous bag spring materials for bonding. The ZJ8L fully automatic pocket spring assembly machine not only has the advantages of easy operation, stable production, and fully automatic production, but also features a unique splitter conveyor belt, effectively improving production efficiency. It is an essential specialized equipment for producing pocket spring mattresses or pocket spring sofas.

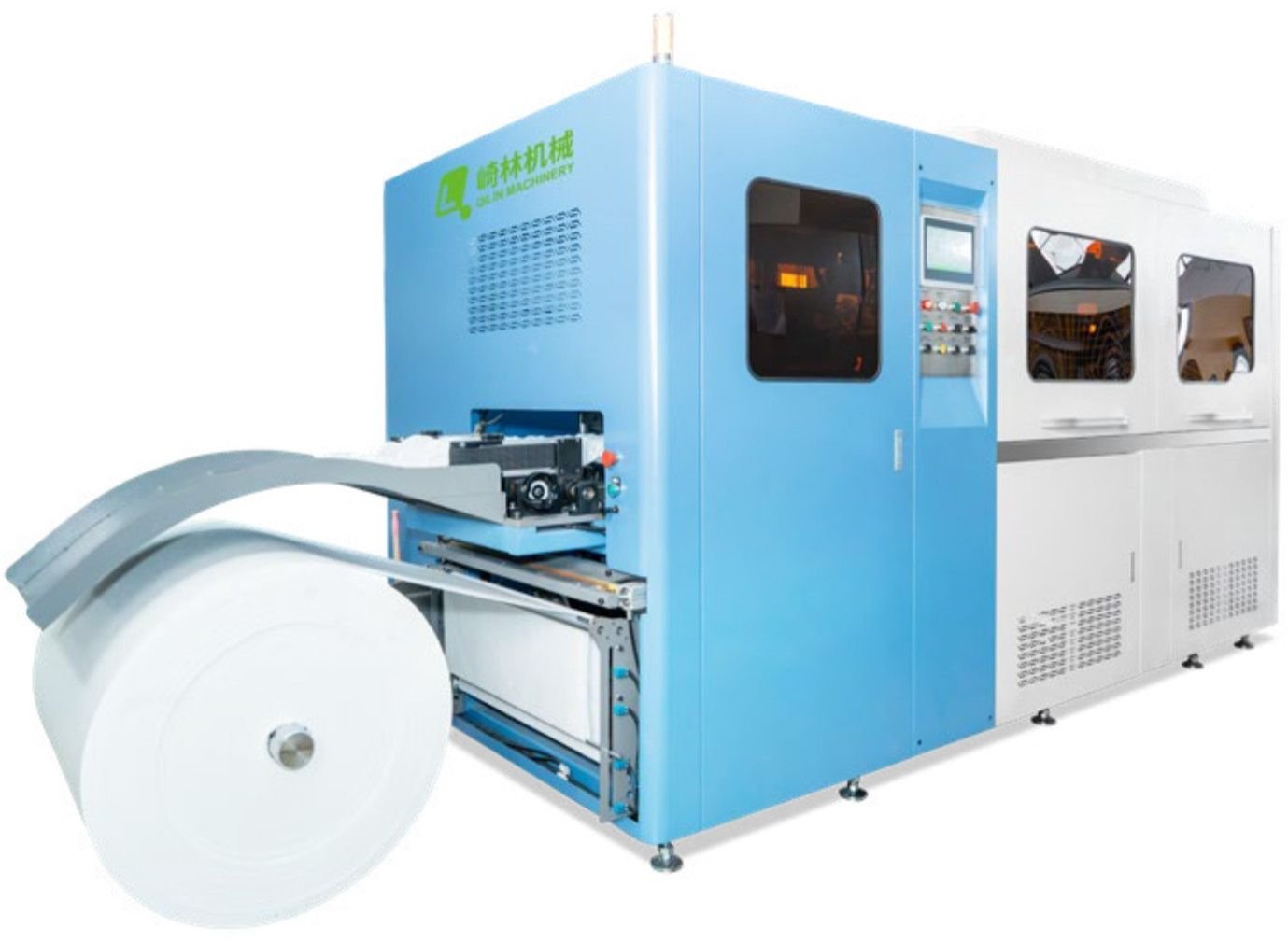

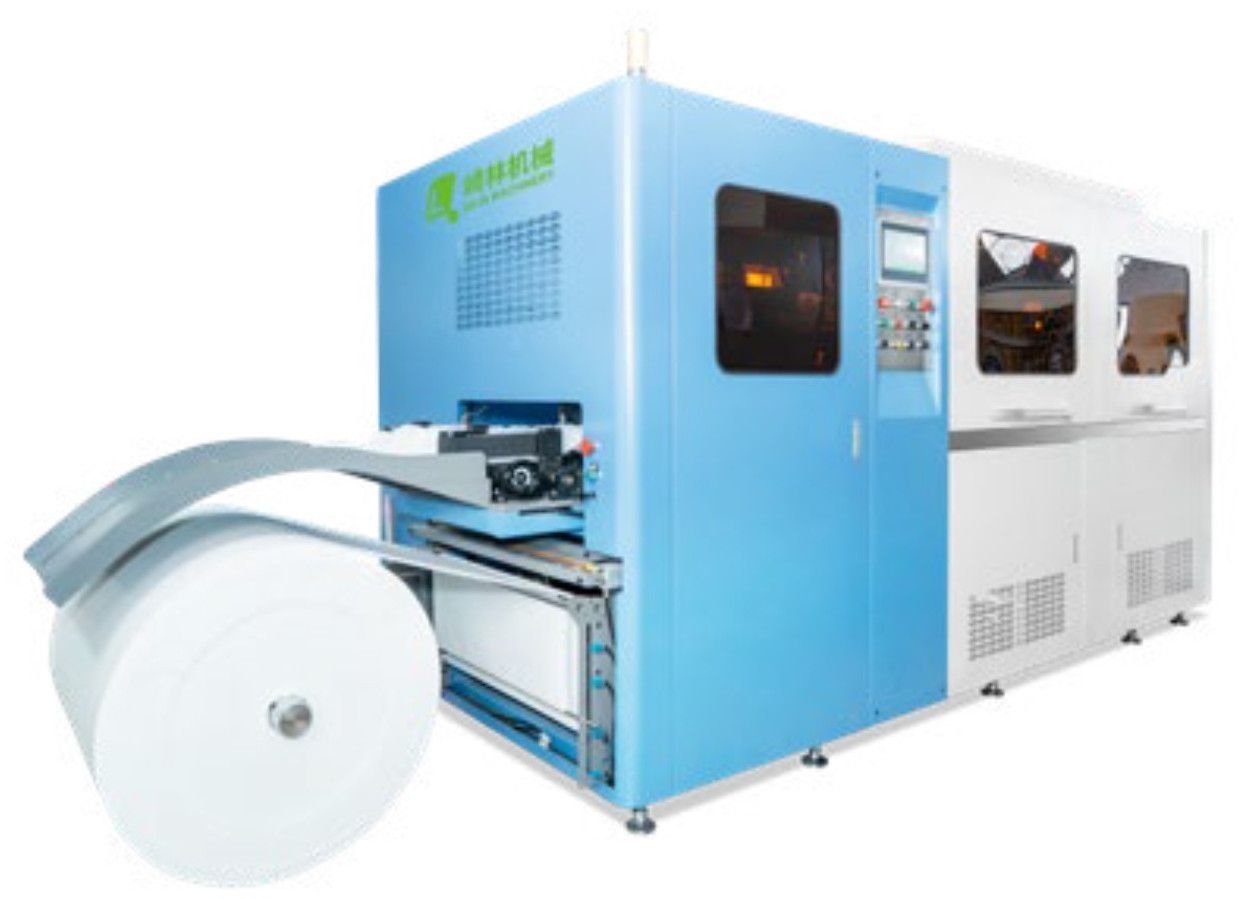

• This spring coiling machine is designed for making cylindrical shape spring for making pocket springs, This is high speed pocket spring machine with double wire feeding to go for the large scale production. Fully automatic and equipped with advance & user friendly features to adjust spring height and shapes. Feeding Non woven to cover pocket spring is automatic along with heat treatment process for harding and weld the spring edge, complete automated production.

Machine Features-

• Adapt to cylindrical and barrel shape spring.

• The heat treatment device which can adapt to different spring height, easy for adjustment.

• Double head faster and more durable than single head machine.

• The nonwoven joint device saves material and labor cost.

• Multi section function enables multi zone pocket spring.

• Multi fault detecting device effectively reduce the wastage.

• Machine operating system is user friendly, no special requirement for the machine.

Technical Specification-

• Model: GSDZ8

• Brand: Qilin Mattress Machinery

• Output: 110pcs/min

• Non-Woven Supply: 60 – 100GSM

• Non-Woven Width: 340-680mm

• Wire Diameter: 1.6 ~ 2.4mm

• Spring Height: 60-180mm || 80-220mm || 120-260mm

• Spring Core Diameter: 38-48mm || 55-72mm || 65-78mm

• Air Consumption: 0.8mpa/min

• Power: 10kw

• Rated Voltage: 380VAC, 3Phase, 50/60Hz.

• Weight: 4000kg

• Dimension (L*W*H): 3900* 1480* 1900mm

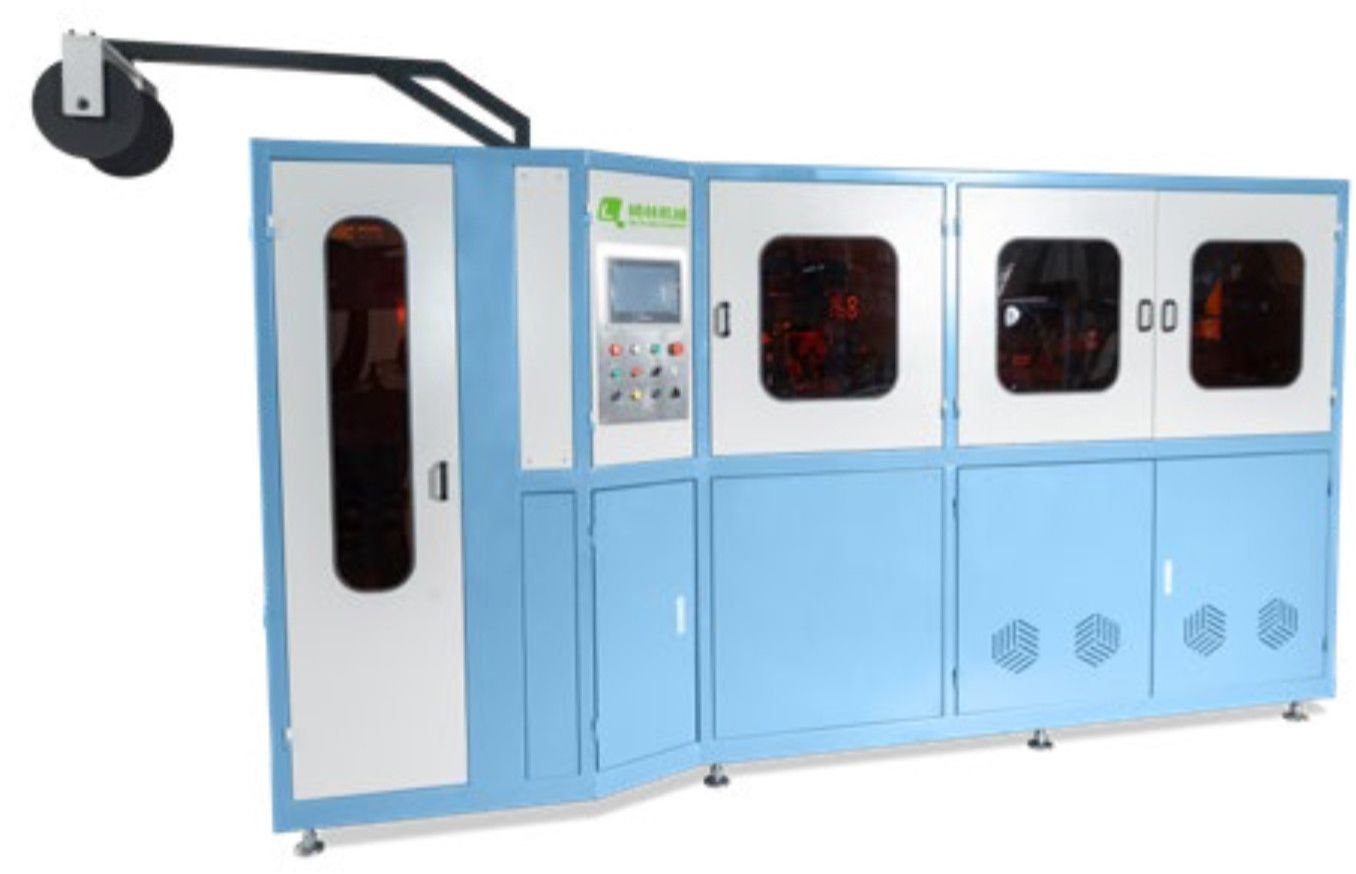

GDZ8S/GDZ8S-130DW Pocket Spring Machine is a new generation of high-speed CNC pocket spring machine designed by our company according to market demand, with multiple patented technologies. It is equipped with a fully CNC spring coiling machine head and has the advantages of simple operation, stable production, and material saving. It is a specialized equipment for producing pocket spring mattresses or pocket spring sofas.

• Its feature: easy and convenient operation, stable performance, high efficiency. High quality Zig Zag Spring forming Machine is applied to expertly produce kinds of snake springs fully automatically. No need people to watch over it. It is combined winding device to wind snake springs into coils fully automatically.

Technical Specification-

• Production capacity: 200peak/min

• Applicable for steel wire: φ2.5-4mm

• Spring pitch: 25-51mm

• Spring height: 20-80mm

• Working character: continually

• Main Drive Power: 2.3kw

• Rated Power: 380VAC, 3Phase

• Weight: 1100kg

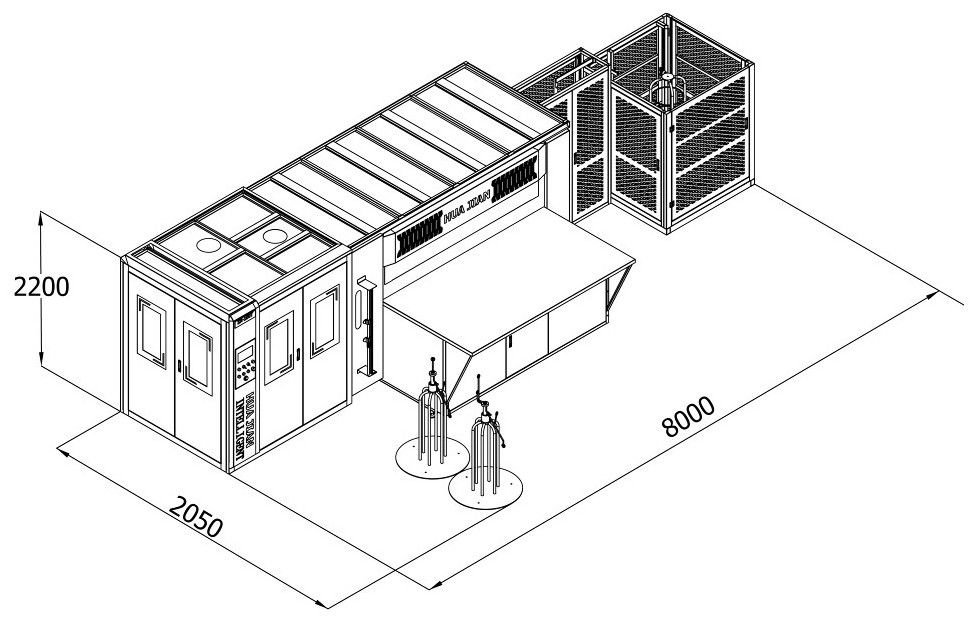

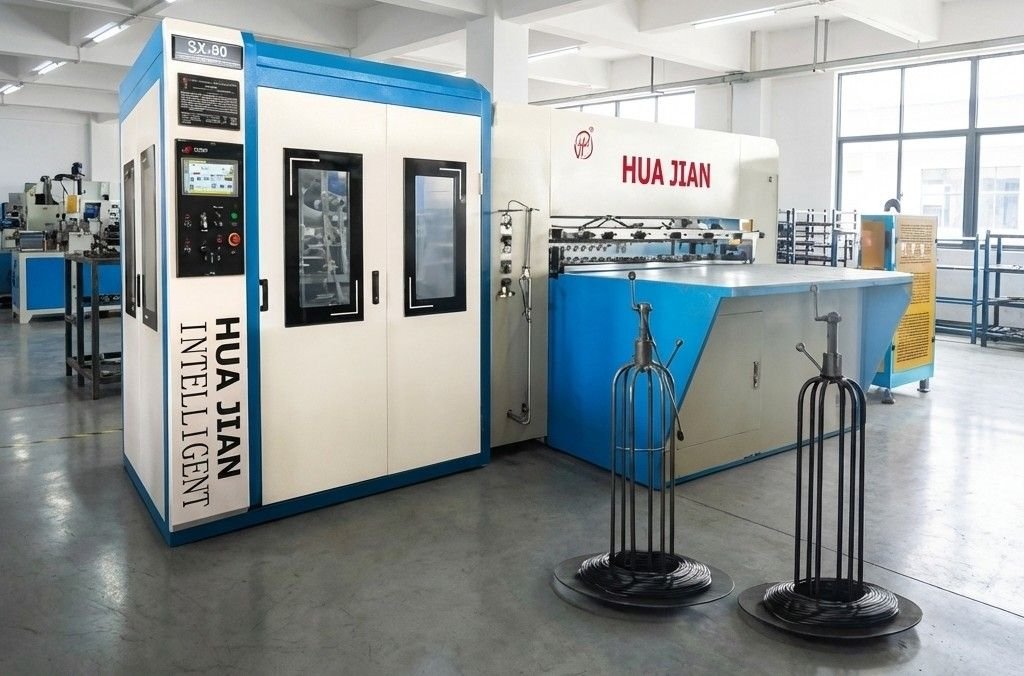

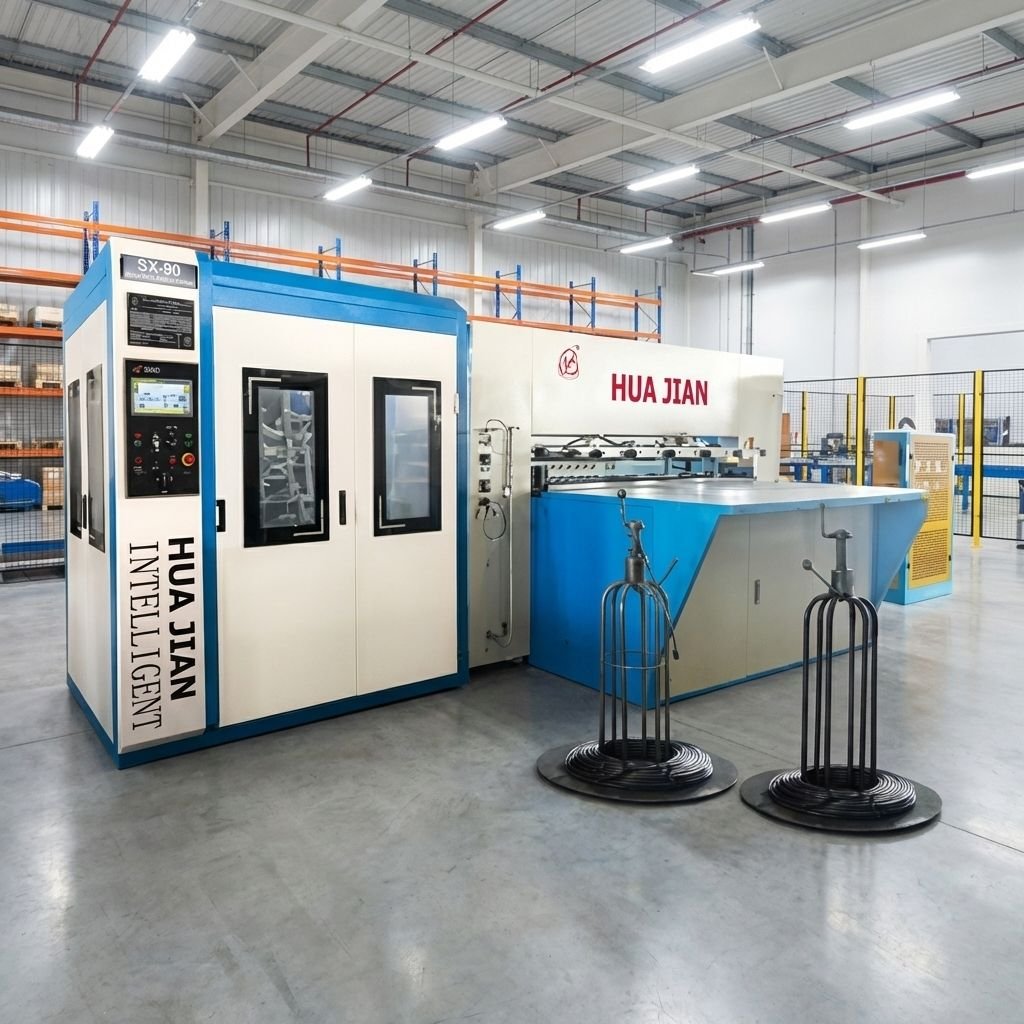

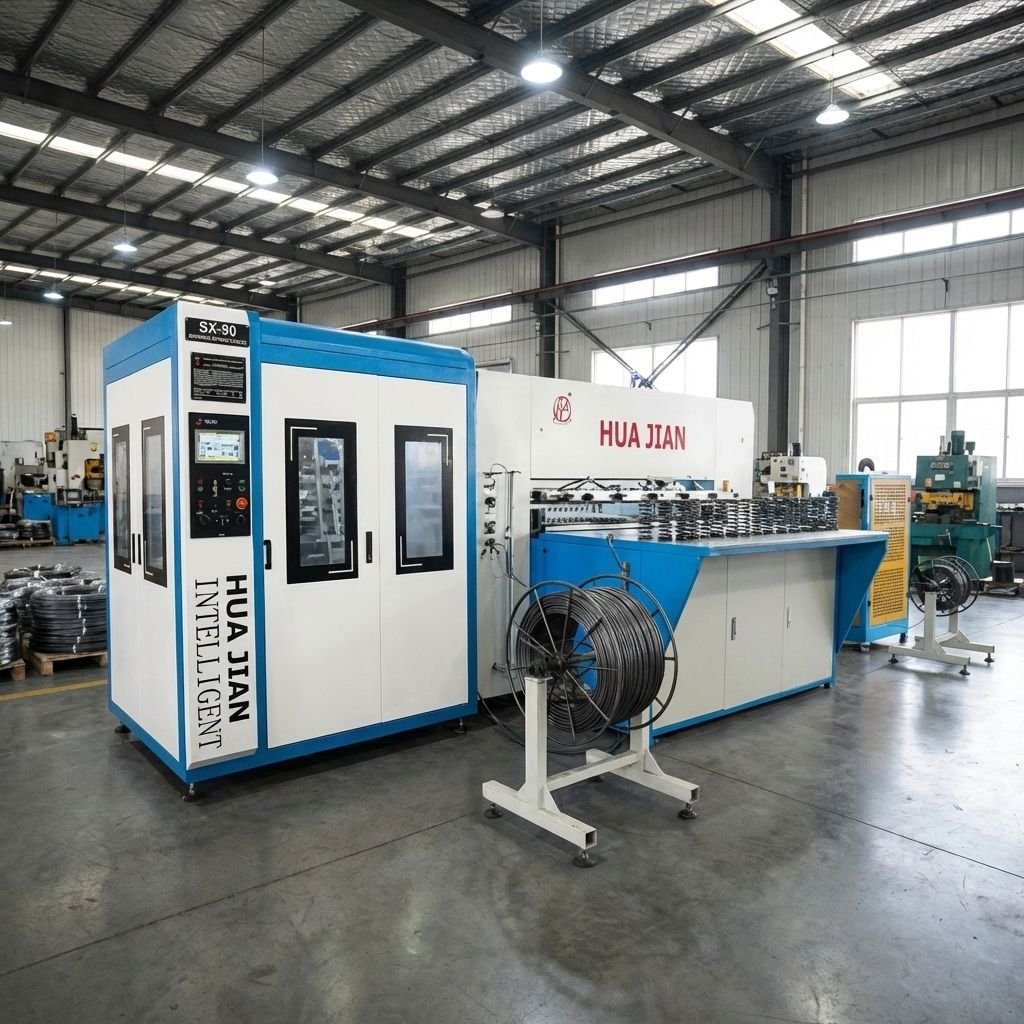

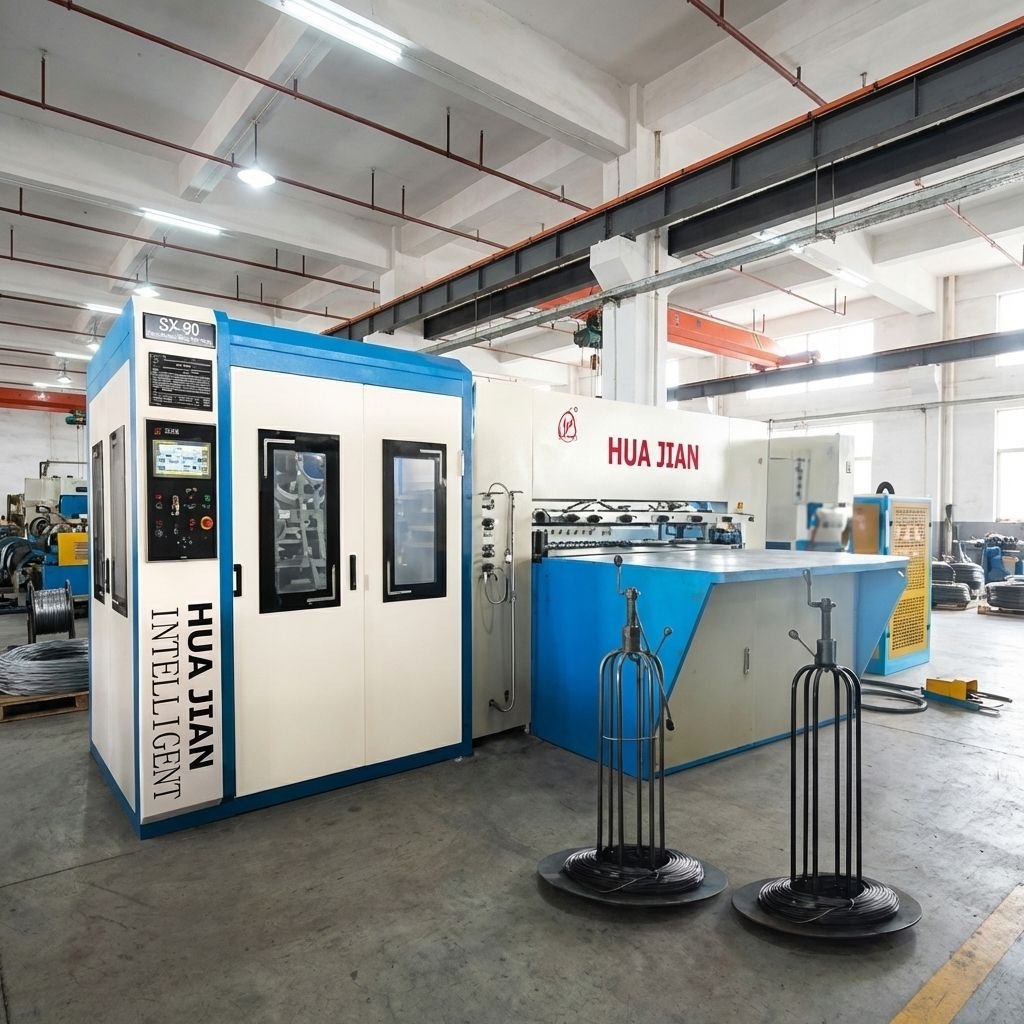

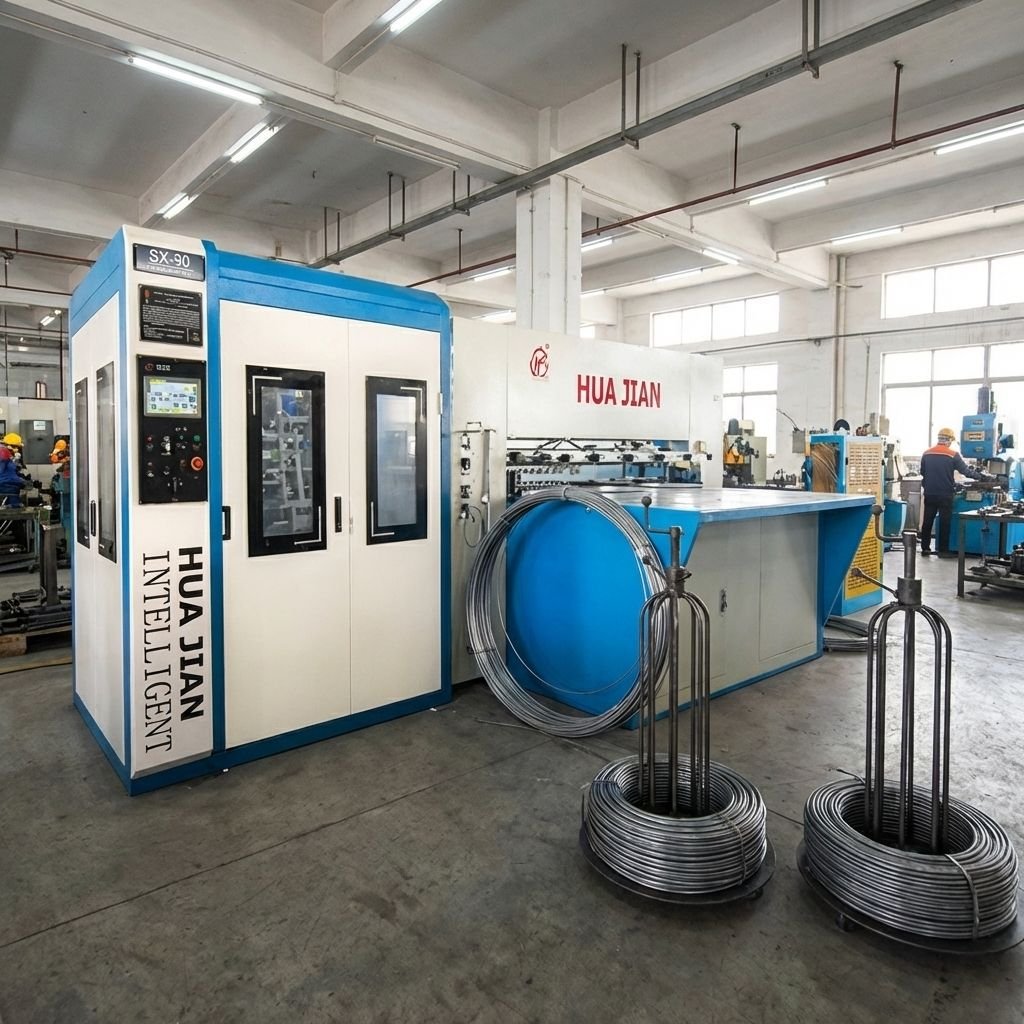

• This spring assembling machine is for assemble bonnell springs to make bonnell spring unit for mattress. by feeding single springs to assemble springs in to spring unit process is automatic.

SX-200s Advantage-

• With servo motor for the wire feeding.

• The feeding speed is faster, in the screen, you can put one width, then the helical wire can stop there with precisely calculation, and can detect which jaws have the most of the problems for you to solve immediately.

• For the unit, like for the king size, how many units you want to produce, then you can set up the numbers in the computer, then when the units quantities arrive, the machine will stop, then you can set up other numbers for another size.

• The helical wire if any mixed or finished, the machine will stop.

• The push out plate become lighter to less the vibration of the machine to enlarge the lifetime.

Technical Specification-

• Model: SX-200s

• Brand: Huajian

• Output: 80-100unit/8hour (1800 * 2000mm)

• Max Width: 2000mm

• Wire Diameter: 1.3 ~ 1.5mm

• Spring Wire Diameter: 1.8 ~ 2.4mm

• Spring Height: 70 ~ 190mm (Option 190 -210mm)

• Spring Caliber: (65-95mm)

• Power: 3.0kw

• Rated Power:; 380VAC, 3Phase, 50/60Hz.

• Dimension (L*W*H): 3100* 960*1900mm
