5.50 Lac - 17.50 Lac / piece( + 18% GST applicable)
| Business Type | Supplier, Importer |
| Thread Type | Polyester Thread |
| Features | Thread Trimmer, Automatic Back Tack, Auto Foot Lift, LED Light |
| Control Panel Type | Built-in Panel |
| Click to view more | |
Product Details
Lubrication System
Manual Lubrication
Needle System
DPx5
Feed Mechanism
Needle Feed
Bed Type
Flat Bed
Stitch Type
Lock Stitch
Motor Type
Servo Motor
Sewing Speed
2000 – 4000 Stitches/min
Application / Usage
Garment Manufacturing, Upholstery, Bags & Luggage, Industrial Fabric
Number of Needles
1 Needle
Operation Type
Computerized
Country of Origin
China
Model
BT-2225-S,BT-2528-S,BT-3032-S,BT-2628-HS,BT-3232-HS,BT-3235-HS,BT-2628-I,BT-3232-I,BT-3235-I
Frame Size
2200 X 2500mm,2500 X 2800mm,3000 X 3200mm,2600 X 2800mm,3200 X 3200mm,3200 X 3500mm
Needle Drop Size
2000 X 2300mm,2300 X 2600mm,2800 X 3000mm,2400 X 2600mm,3000 X 3000mm,3000 X 3300mm
Sewing Head
Japan With Big Rotary Hook
Quilting Thickness
800GSM,1200GSM
Working Speed
2200rpm,2800rpm,3200rpm
Dimensions
3100 X 3000 X 1400mm,3400 X 3300 X 1400mm,3900 X 3800 X 1400mm,5200 X 4000 X 1600mm,5600 X 4400 X 1600mm,5900 X 4600 X 1600mm
Brand
Korum Quilting
Brand Name
BedTex
Weight
1000-2000kg, 800kg,1000kg,1500kg,2500kg,2800kg,3200kg
Voltage
220V, 220VAC
Condition
New
Automatic Grade
Automatic
Power
1-3kw, 1.5kw,2.0kw,2.55kw,2.0kw,2.5kw,3.2kw
Port
Delhi
Payment Terms
Other
Delivery Time
60days
Packaging Details
Wooden Box
-

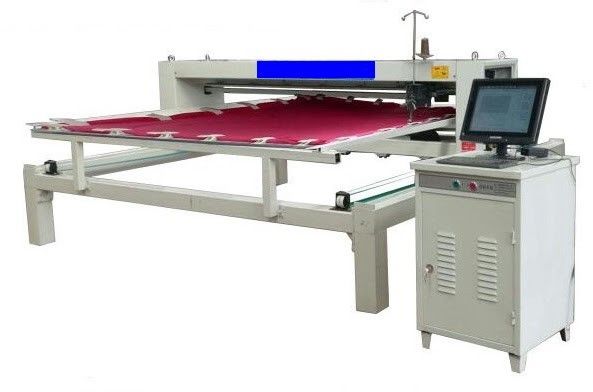

This single-head quilting machine is designed specifically for creating home furnishing items such as quilts, pillow covers, and mattress covers, offering precision and efficiency. Its adjustable frames enable users to produce various sizes of products, making it a versatile solution for manufacturers and home crafters alike.

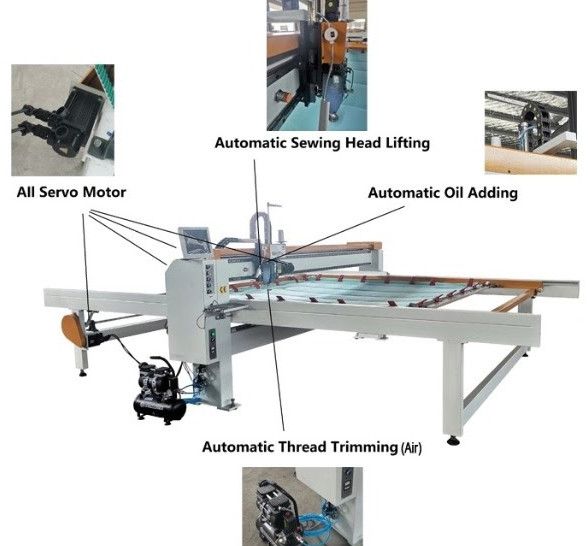

Features-
-
Adopted Japanese Technology.
-
Full Servo Motor Controlled.
-
Touch panel with editable sizes & configurations.
-
Automatic stop when thread break and thread breakpoint repair.
-
Automatic return to origin when frame complete.
-
Auto Thread trimming system.
-
Any error in machine show on machine display, until the problem has solved.
-
Automatic Oil Lubricating System.
-
Lifting Head Automatic for Frame Adjustment up to 15cm.
-
Inbuilt 350EA Designs for your choice, and customized designs also can be upload by USB drive.
-
Machine very easy to operate and takes less maintenance.
Technical Specification-
-
Model: BT-2225-S / BT-2528-S / BT-3032-S
- Brand: Korum Quilting
-
Frame Size: 2200 x 2500mm / 2500 x 2800mm / 3000 x 3200mm
-
Needle Drop Size: 2000 x 2300mm / 2300 x 2600mm / 2800 x 3000mm
-
Sewing Head: Japan with Big Rotary Hook
-
Quilting Thickness: 800GSM
-
Working Speed: 2200rpm
-
Power: 1.5kw / 2.0kw / 2.55kw
-
Voltage: 220VAC / single Phase / 50Hz
-
Weight: 800kg / 1000kg / 1500kg
-
Dimensions: 3100 x 3000 x 1400mm / 3400 x 3300 x 1400mm / 3900 x 3800 x 1400mm
Technical Specification-
-
Model: BT-2628-HS / BT-3232-HS / BT-3235-HS
- Brand: Korum Quilting
-
Frame Size: 2600 x 2800mm / 3200 x 3200mm / 3200 x 3500mm
-
Needle Drop Size: 2400 x 2600mm / 3000 x 3000mm / 3000 x 3300mm
-
Sewing Head: Japan with Big Rotary Hook
-
Quilting Thickness: 1200GSM
-
Working Speed: 2800rpm
-
Power: 2.0kw / 2.5kw / 3.2kw
-
Voltage: 220VAC / single Phase / 50Hz
-
Weight: 2500kg / 2800kg / 3200kg
-
Dimensions: 5200 x 4000 x 1600mm / 5600 x 4400 x 1600mm / 5900 x 4600 x 1600mm
Technical Specification-
-
Model: BT-2628-I / BT-3232-I / BT-3235-I
- Brand: Korum Quilting
-
Frame Size: 2600 x 2800mm / 3200 x 3200mm / 3200 x 3500mm
-
Needle Drop Size: 2400 x 2600mm / 3000 x 3000mm / 3000 x 3300mm
-
Sewing Head: Japan with Big Rotary Hook
-
Quilting Thickness: 1200GSM
-
Working Speed: 3200rpm
-
Power: 2.0kw / 2.5kw / 3.2kw
-
Voltage: 220VAC / single Phase / 50Hz
-
Weight: 2500kg / 2800kg / 3200kg
-
Dimensions: 5200 x 4000 x 1600mm / 5600 x 4400 x 1600mm / 5900 x 4600 x 1600mm
