5 Lac - 15 Lac / piece( + 18% GST applicable)
| Business Type | Supplier, Importer |
| Automation Grade | Automatic |
| Material | Steel Wire |
| Wire Diameter Capacity | 1.9 - 2.4mm |
| Click to view more | |
Product Details
Production Capacity
85 -90 springs per minute
Control System
PLC Control
Power Consumption
42.3kw
Voltage
380V
Application
Spring Manufacturing, Bonnell Spring Manufacturing
Model
SX-90
Brand
Huajian Machinery
Country of Origin
China
Wire Diameter
1.9 - 2.4mm
Spring End Diameterq
62 - 72mm | 75 – 90mm | 82 – 92mm
Number of rings
4 - 7turns
Spring Height
100 - 190mm
Machine Weight
5500kg
Product Code
SX-90
Port
Delhi
Payment Terms
Other
Delivery Time
60days
Packaging Details
Customized

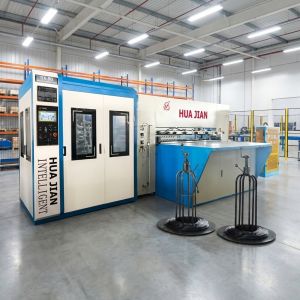

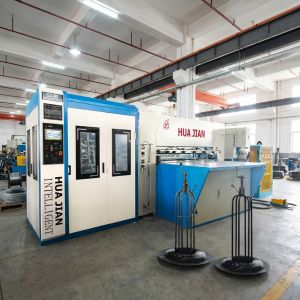

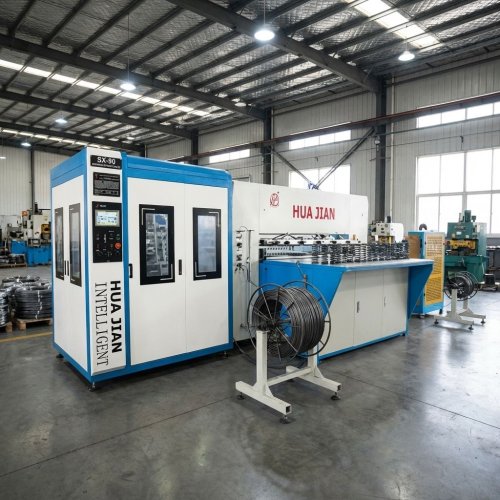

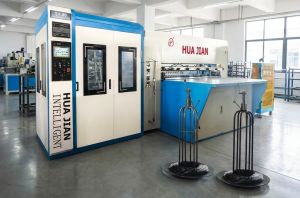

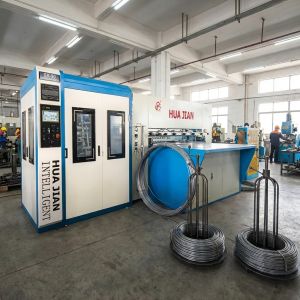

This fully automatic spring coiling machine is best design for making bonnell spring on the high speed mode with automatic feeder to assembly line to reduce the producion cost and assemble the spring on the automatic mode to make bonnell spring unit for making premium range of spring mattress. This is based on the touch panel with PLC control system.
