| Business Type | Supplier, Importer |
| Machine Structure | Heavy Duty Structure |
| Number Of Axes | 2 Axis |
| Feeding Speed | Up To 20 M/min |
| Click to view more | |
Product Details
-

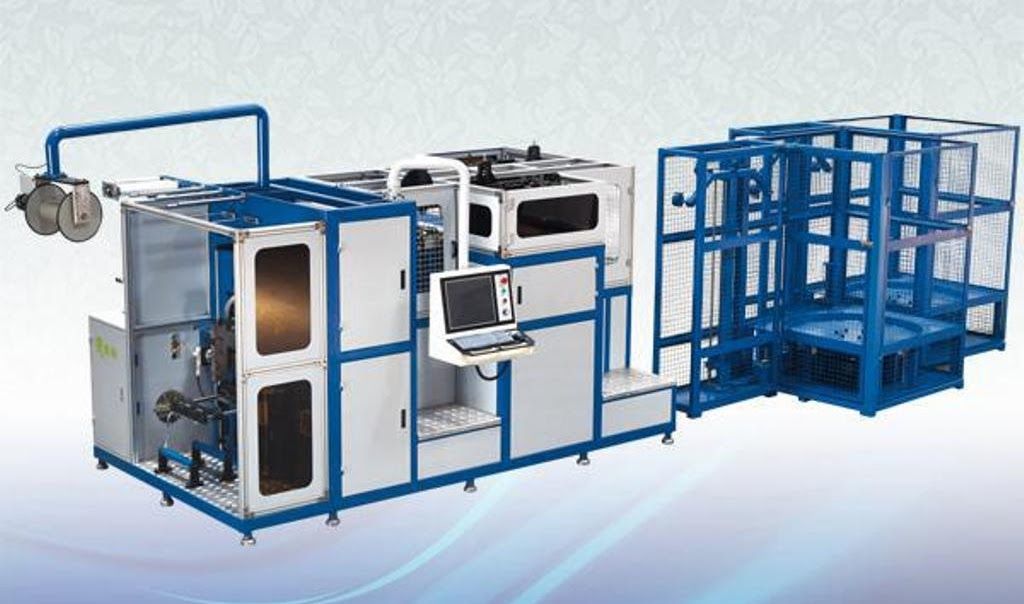

This spring coiling machine is designed for making cylindrical shape spring for making pocket springs, This is high speed pocket spring machine with double wire feeding to go for the large scale production. Fully automatic and equipped with advance & user friendly features to adjust spring height and shapes. Feeding Non woven to cover pocket spring is automatic along with heat treatment process for harding and weld the spring edge, complete automated production.
Machine Features-
-
Adapt to cylindrical and barrel shape spring.
-
The heat treatment device which can adapt to different spring height, easy for adjustment.
-
Double head faster and more durable than single head machine.
-
The nonwoven joint device saves material and labor cost.
-
Multi section function enables multi zone pocket spring.
-
Multi fault detecting device effectively reduce the wastage.
-
Machine operating system is user friendly, no special requirement for the machine.
Technical Specification-
-
Model: GDZ9CU-63
-
Brand: Qilin Mattress Machinery
-
Output: 180pcs/min
-
Non-Woven Supply: 60 – 100GSM
-
Non-Woven Width: 340-680mm
-
Wire Diameter: 1.6 ~ 2.4mm
-
Spring Height: 60-180mm || 80-220mm || 120-260mm
-
Spring Core Diameter: 38-48mm || 55-72mm || 65-78mm
-
Air Consumption: 0.8mpa/min
-
Power: 10kw
-
Rated Voltage: 380VAC, 3Phase, 50/60Hz.
-
Weight: 4000kg
-
Dimension (L*W*H): 3900* 1480* 1900mm
